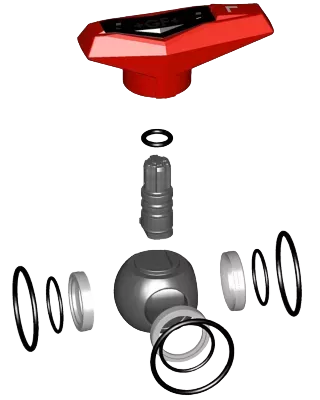

Kugel Set T-Bohrung

Hersteller

GEORG FISCHER +GF+

Produktvarianten

Produktcode	DN [mm]	Velikost [inch]	d [mm]
161488182 PVC-U/EPDM	10 - 15	3/8 - 1/2	16 - 20
161488183 PVC-U/EPDM	20	3/4	25
161488184 PVC-U/EPDM	25	1	32
161488185 PVC-U/EPDM	32	1 1/4	40
161488186 PVC-U/EPDM	40	1 1/2	50
161488187 PVC-U/EPDM	50	2	63
161488192 PVC-U/FKM	10 - 15	3/8 - 1/2	16 - 20
163482002 PVC-C/EPDM	10 - 15	3/8 - 1/2	16 - 20
163482012 PVC-C/FKM	10 - 15	3/8 - 1/2	16 - 20
169481292 ABS/EPDM	10 - 15	3/8 - 1/2	16 - 20
167484902 PP-H/EPDM	10 - 15	3/8 - 1/2	16 - 20
167484912 PP-H/FKM	10 - 15	3/8 - 1/2	16 - 20
175483652 PVDF/FKM	10 - 15	3/8 - 1/2	16 - 20
161488193 PVC-U/FKM	20	3/4	25
163482003 PVC-C/EPDM	20	3/4	25
163482013 PVC-C/FKM	20	3/4	25
169481293 ABS/EPDM	20	3/4	25
167484903 PP-H/EPDM	20	3/4	25
167484913 PP-H/FKM	20	3/4	25
175483653 PVDF/FKM	20	3/4	25
161488194 PVC-U/FKM	25	1	32
163482004 PVC-C/EPDM	25	1	32
163482014 PVC-C/FKM	25	1	32
169481294 ABS/EPDM	25	1	32
167484904 PP-H/EPDM	25	1	32
167484914 PP-H/FKM	25	1	32
175483654 PVDF/FKM	25	1	32
161488195 PVC-U/FKM	32	1 1/4	40
163482005 PVC-C/EPDM	32	1 1/4	40
163482015 PVC-C/FKM	32	1 1/4	40
169481295 ABS/EPDM	32	1 1/4	40
167484905 PP-H/EPDM	32	1 1/4	40
167484915 PP-H/FKM	32	1 1/4	40
175483655 PVDF/FKM	32	1 1/4	40
161488196 PVC-U/FKM	40	1 1/2	50
163482006 PVC-C/EPDM	40	1 1/2	50
163482016 PVC-C/FKM	40	1 1/2	50
169481296 ABS/EPDM	40	1 1/2	50
167484906 PP-H/EPDM	40	1 1/2	50
167484916 PP-H/FKM	40	1 1/2	50
175483656 PVDF/FKM	40	1 1/2	50
161488197 PVC-U/FKM	50	2	63
163482007 PVC-C/EPDM	50	2	63
163482017 PVC-C/FKM	50	2	63
169481297 ABS/EPDM	50	2	63
167484907 PP-H/EPDM	50	2	63
167484917 PP-H/FKM	50	2	63
175483657 PVDF/FKM	50	2	63
