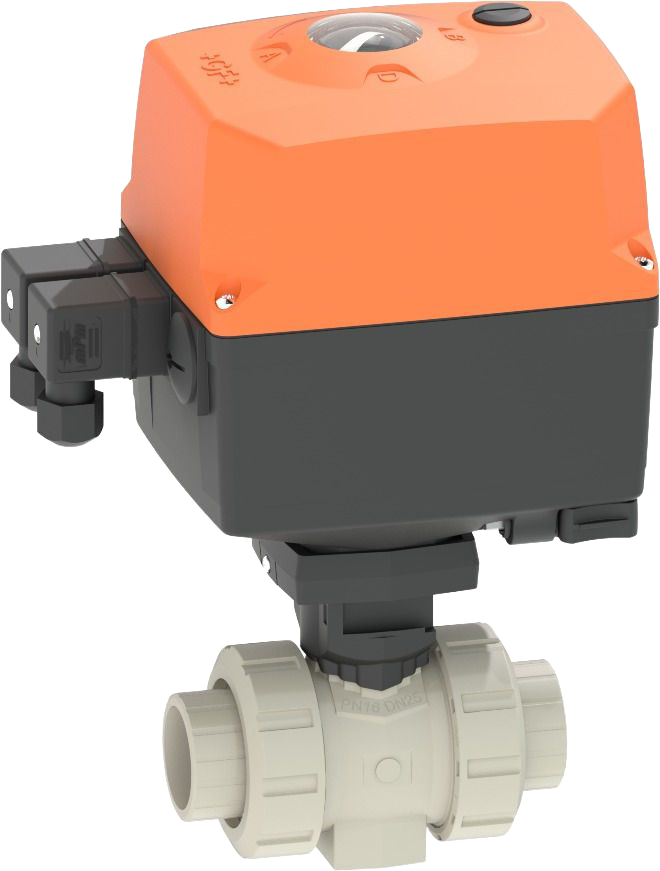

PROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- IP68 Rating
- Factory set control range 90°<)
- Heating element, position feedback (Open/Close)
- Integrated stainless steel mounting inserts
Option:
- Other valve and actuator configurations available
- Optional accessories: Fail-safe return unit
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199127502 EPDM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127502 EPDM |
| 199127503 EPDM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127503 EPDM |
| 199127504 EPDM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127504 EPDM |
| 199127505 EPDM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127505 EPDM |
| 199127506 EPDM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127506 EPDM |
| 199127507 EPDM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127507 EPDM |
| 199127508 EPDM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127508 EPDM |
| 199127512 FKM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127512 FKM |
| 199127513 FKM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127513 FKM |
| 199127514 FKM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127514 FKM |
| 199127515 FKM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127515 FKM |
| 199127516 FKM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127516 FKM |
| 199127517 FKM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127517 FKM |
| 199127518 FKM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199127518 FKM |
