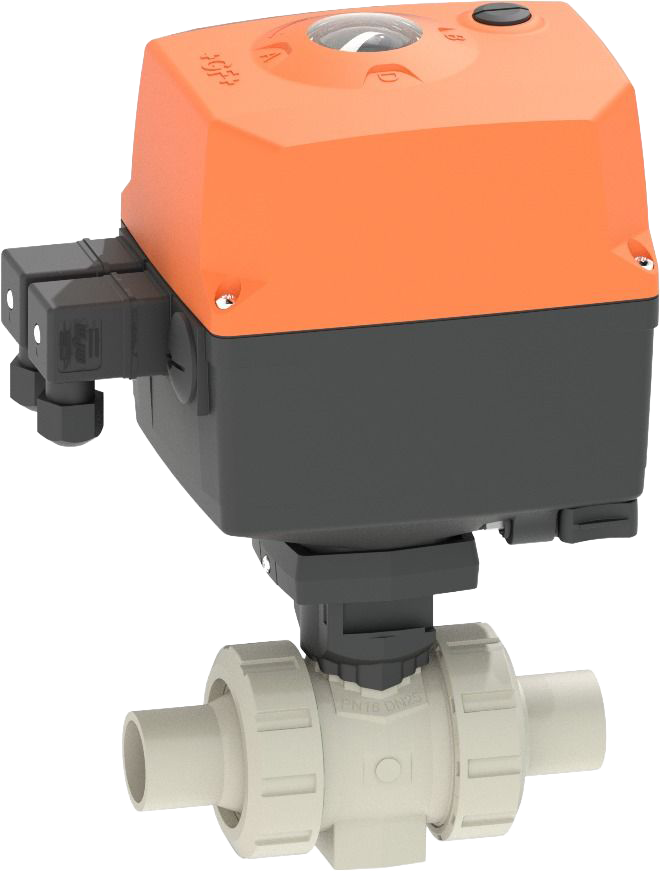

PROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With butt fusion spigots / PP-H / SDR11 / ISO
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- IP68 Rating
- Factory set control range 90°<)
- Heating element, position feedback (Open/Close/ Middle)
- Integrated stainless steel mounting inserts
Option:
- Other valve and actuator configurations available
- Optional accessories: Monitoring board, Positioner, Profibus DP board, Modbus TCP EA 25-250 Ethernet Interface Card
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | SDR | |
|---|---|---|---|---|---|---|
| 199180323 EPDM | 15 | 20 | 10 | 185 | 11 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With butt fusion spigots / PP-H / SDR11 / ISO · Product code 199180323 EPDM |
| 199180324 EPDM | 20 | 25 | 10 | 350 | 11 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With butt fusion spigots / PP-H / SDR11 / ISO · Product code 199180324 EPDM |
| 199180325 EPDM | 25 | 32 | 10 | 700 | 11 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With butt fusion spigots / PP-H / SDR11 / ISO · Product code 199180325 EPDM |
| 199180326 EPDM | 32 | 40 | 10 | 1000 | 11 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With butt fusion spigots / PP-H / SDR11 / ISO · Product code 199180326 EPDM |
| 199180327 EPDM | 40 | 50 | 10 | 1600 | 11 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With butt fusion spigots / PP-H / SDR11 / ISO · Product code 199180327 EPDM |
| 199180328 EPDM | 50 | 63 | 10 | 3100 | 11 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With butt fusion spigots / PP-H / SDR11 / ISO · Product code 199180328 EPDM |
| 199180329 EPDM | 65 | 75 | 10 | 5000 | 11 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With butt fusion spigots / PP-H / SDR11 / ISO · Product code 199180329 EPDM |
| 199180330 EPDM | 80 | 90 | 10 | 7000 | 11 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With butt fusion spigots / PP-H / SDR11 / ISO · Product code 199180330 EPDM |
| 199180331 EPDM | 100 | 110 | 10 | 11000 | 11 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With butt fusion spigots / PP-H / SDR11 / ISO · Product code 199180331 EPDM |
