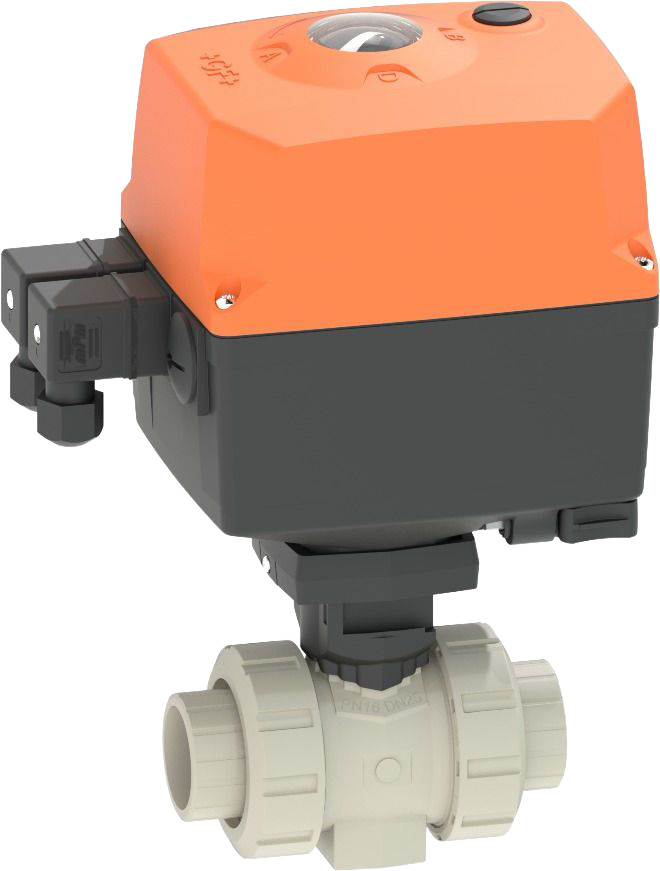

PROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- IP68 Rating
- Factory set control range 90°<)
- Heating element, position feedback (Open/Close/ Middle)
- Integrated stainless steel mounting inserts
Option:
- Other valve and actuator configurations available
- Optional accessories: Monitoring board, Positioner, Profibus DP board, Modbus TCP EA 25-250 Ethernet Interface Card
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199180002 EPDM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180002 EPDM |
| 199180003 EPDM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180003 EPDM |
| 199180004 EPDM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180004 EPDM |
| 199180005 EPDM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180005 EPDM |
| 199180006 EPDM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180006 EPDM |
| 199180007 EPDM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180007 EPDM |
| 199180008 EPDM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180008 EPDM |
| 199180009 EPDM | 65 | 2 1/2 | 75 | 10 | 5000 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180009 EPDM |
| 199180010 EPDM | 80 | 3 | 90 | 10 | 7000 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180010 EPDM |
| 199180011 EPDM | 100 | 4 | 110 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180011 EPDM |
| 199180012 FKM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180012 FKM |
| 199180013 FKM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180013 FKM |
| 199180014 FKM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180014 FKM |
| 199180015 FKM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180015 FKM |
| 199180016 FKM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180016 FKM |
| 199180017 FKM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180017 FKM |
| 199180018 FKM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180018 FKM |
| 199180019 FKM | 65 | 2 1/2 | 75 | 10 | 5000 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180019 FKM |
| 199180020 FKM | 80 | 3 | 90 | 10 | 7000 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180020 FKM |
| 199180021 FKM | 100 | 4 | 110 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard Ball valve type 180 100-230V / With manual emergency override / With fusion sockets / PP-H / ISO · Product code 199180021 FKM |
