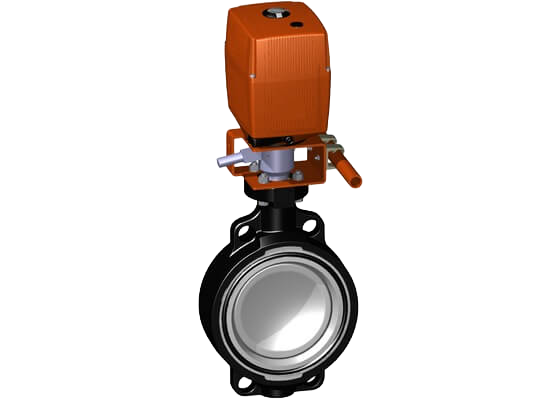

Butterfly valve type 145 PVC-C, 24 V, with manual override
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Voltage 24V AC/DC
- Factory set control range 90°<)
- Heating element, position feedback (Open/Close/ Middle)
- Overall length according to EN 558, ISO 5752 (DN50-200 line 25, DN250-300 line 16)
- Connecting dimension: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10, ANSI/ASME B 16.5 Class 150, BS 1560: 1989, BS 4504, JIS B 2220
Option:
- Other valve and actuator configurations available
- Optional accessories: Fail-safe return unit, Monitoring board, Position controller, Profibus DP board
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199145242 EPDM | 50 | 2 | 63 | 10 | 740 |
Inquiry Enter quantityButterfly valve type 145 PVC-C, 24 V, with manual override · Product code 199145242 EPDM |
| 199145243 EPDM | 65 | 2 1/2 | 75 | 10 | 1500 |
Inquiry Enter quantityButterfly valve type 145 PVC-C, 24 V, with manual override · Product code 199145243 EPDM |
| 199145244 EPDM | 80 | 3 | 90 | 10 | 2400 |
Inquiry Enter quantityButterfly valve type 145 PVC-C, 24 V, with manual override · Product code 199145244 EPDM |
| 199145245 EPDM | 100 | 4 | 110 | 10 | 3800 |
Inquiry Enter quantityButterfly valve type 145 PVC-C, 24 V, with manual override · Product code 199145245 EPDM |
| 199145246 EPDM | 125 | 5 | 140 | 10 | 8600 |
Inquiry Enter quantityButterfly valve type 145 PVC-C, 24 V, with manual override · Product code 199145246 EPDM |
| 199145247 EPDM | 150 | 6 | 160 | 10 | 11400 |
Inquiry Enter quantityButterfly valve type 145 PVC-C, 24 V, with manual override · Product code 199145247 EPDM |
| 199145248 EPDM | 200 | 8 | 225 | 10 | 19900 |
Inquiry Enter quantityButterfly valve type 145 PVC-C, 24 V, with manual override · Product code 199145248 EPDM |
| 199145784 PTFE | 80 | 3 | 90 | 10 | 2400 |
Inquiry Enter quantityButterfly valve type 145 PVC-C, 24 V, with manual override · Product code 199145784 PTFE |
| 199145785 PTFE | 100 | 4 | 110 | 10 | 3800 |
Inquiry Enter quantityButterfly valve type 145 PVC-C, 24 V, with manual override · Product code 199145785 PTFE |
| 199145786 PTFE | 125 | 5 | 140 | 10 | 8600 |
Inquiry Enter quantityButterfly valve type 145 PVC-C, 24 V, with manual override · Product code 199145786 PTFE |
| 199145787 PTFE | 150 | 6 | 160 | 10 | 11400 |
Inquiry Enter quantityButterfly valve type 145 PVC-C, 24 V, with manual override · Product code 199145787 PTFE |
| 199145788 PTFE | 200 | 8 | 225 | 10 | 19900 |
Inquiry Enter quantityButterfly valve type 145 PVC-C, 24 V, with manual override · Product code 199145788 PTFE |
