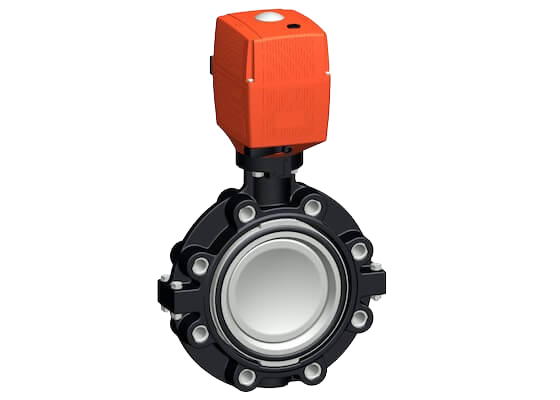

Butterfly valve type 146 PVC-C, 100-230 V, without manual override
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Voltage 100-230V, 50-60Hz
- Factory set control range 90°<)
- Heating element, position feedback (Open/Close/ Middle)
- Overall length according to EN 558, ISO 5752 (DN50-200 line 25, DN250-300 line 16)
- Connecting dimension: ISO 7005 PN10, EN 1092 PN10, DIN 2501 PN10
Option:
- Other valve and actuator configurations available
- Optional accessories: Fail-safe return unit, Monitoring board, Position controller, Profibus DP board
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | Typ pohonu | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|---|
| 199146202 EPDM | 50 | 2 | 63 | 10 | EA-45 | 740 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146202 EPDM |
| 199146203 EPDM | 65 | 2 1/2 | 75 | 10 | EA-45 | 1500 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146203 EPDM |
| 199146204 EPDM | 80 | 3 | 90 | 10 | EA-120 | 2400 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146204 EPDM |
| 199146205 EPDM | 100 | 4 | 110 | 10 | EA-120 | 3800 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146205 EPDM |
| 199146206 EPDM | 125 | 5 | 140 | 10 | EA-120 | 8600 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146206 EPDM |
| 199146207 EPDM | 150 | 6 | 160 | 10 | EA-120 | 11400 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146207 EPDM |
| 199146208 EPDM | 200 | 8 | 225 | 10 | EA-250 | 19900 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146208 EPDM |
| 199146209 EPDM | 250 | 10 | 280 | 6 | EA-250 | 34000 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146209 EPDM |
| 199146210 EPDM | 300 | 12 | 315 | 4 | EA-250 | 50000 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146210 EPDM |
| 199146722 PTFE | 50 | 2 | 63 | 10 | EA-45 | 740 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146722 PTFE |
| 199146723 PTFE | 65 | 2 1/2 | 75 | 10 | EA-45 | 1500 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146723 PTFE |
| 199146724 PTFE | 80 | 3 | 90 | 10 | EA-120 | 2400 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146724 PTFE |
| 199146725 PTFE | 100 | 4 | 110 | 10 | EA-120 | 3800 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146725 PTFE |
| 199146726 PTFE | 125 | 5 | 140 | 10 | EA-120 | 8600 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146726 PTFE |
| 199146727 PTFE | 150 | 6 | 160 | 10 | EA-120 | 11400 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146727 PTFE |
| 199146728 PTFE | 200 | 8 | 225 | 10 | EA-250 | 19900 |
Inquiry Enter quantityButterfly valve type 146 PVC-C, 100-230 V, without manual override · Product code 199146728 PTFE |
