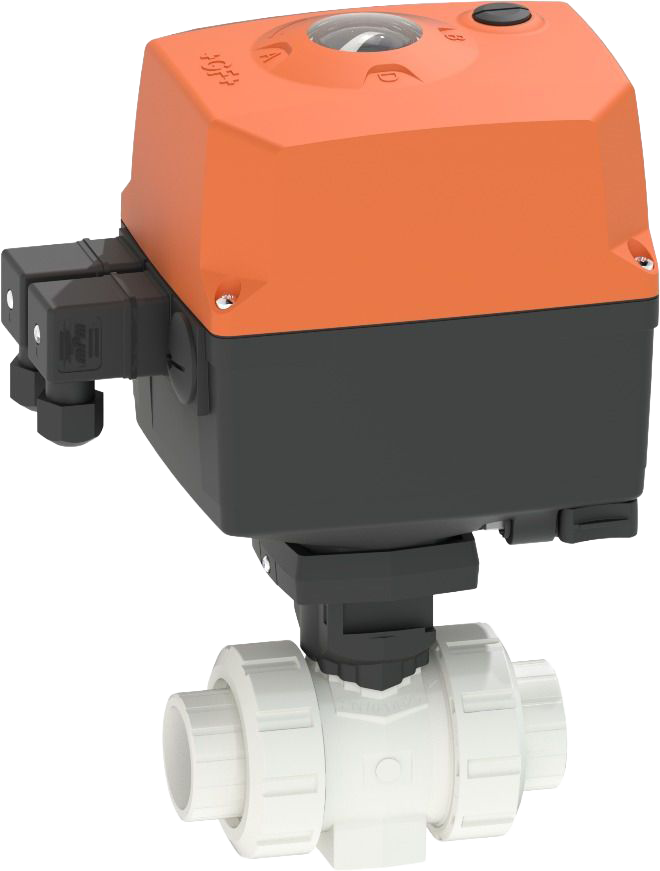

SYGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PVDF / ISO
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- IP68 Rating
- Factory set control range 90°<)
- Heating element, position feedback (Open/Close)
- Integrated stainless steel mounting inserts
Option:
- Other valve and actuator configurations available
- Optional accessories: Fail-safe return unit
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199127802 FKM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantitySYGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PVDF / ISO · Product code 199127802 FKM |
| 199127803 FKM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantitySYGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PVDF / ISO · Product code 199127803 FKM |
| 199127804 FKM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantitySYGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PVDF / ISO · Product code 199127804 FKM |
| 199127805 FKM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantitySYGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PVDF / ISO · Product code 199127805 FKM |
| 199127806 FKM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantitySYGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PVDF / ISO · Product code 199127806 FKM |
| 199127807 FKM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantitySYGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PVDF / ISO · Product code 199127807 FKM |
| 199127808 FKM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantitySYGEF Standard Ball valve type 127 100-230V / With manual emergency override / With fusion sockets / PVDF / ISO · Product code 199127808 FKM |
