Type 2850 Conductivity/Resistivity Integral Systems CPVC

Manufacturer

GEORG FISCHER +GF+

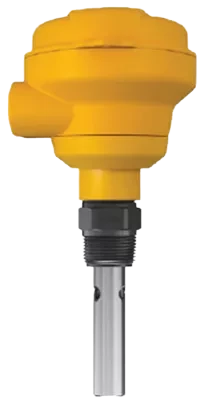

Type 2850 Conductivity/Resistivity Integral Systems CPVC

Product description

Conductivity/Resistivity:

  1. Test certificate supplied with all sensors
  2. Custom cell constant programmed into the electronics
  3. Integral mount systems for quick and easy installation
  4. Extends the distance between the measuring point and the 9900 or 9950 Transmitter to 120 m (400 ft)
  5. EasyCal with automatic test solution recognition
  6. For use with ALL Signet conductivity electrodes

Product variants

Product code Těleso Výstupy Konstanta cely Velikost závitu Provozní rozsah MFR Procesní připojení
159002156 Nerezová ocel Digital (S3L) 0.01 3/4 inch MNPT 0.055 - 100 μS/cm 3-2850-51-81 PVC-C
159002157 Nerezová ocel Digital (S3L) 0.1 3/4 inch MNPT 1 - 1.000 μS/cm 3-2850-51-82 PVC-C
159002158 Nerezová ocel Digital (S3L) 1 3/4 inch MNPT 10 - 10.000 μS/cm 3-2850-51-83 PVC-C
159002159 Nerezová ocel Digital (S3L) 10 3/4 inch MNPT 1.000 - 200.000 μS/cm 3-2850-51-84 PVC-C
159002160 Nerezová ocel Digital (S3L) 0.01 ISO 7/1 - R3/4 0.055 - 100 μS/cm 3-2850-51-81D PVC-C
159002161 Nerezová ocel Digital (S3L) 0.1 ISO 7/1 - R3/4 1 - 1.000 μS/cm 3-2850-51-82D PVC-C
159002162 Nerezová ocel Digital (S3L) 1 ISO 7/1 - R3/4 10 - 10.000 μS/cm 3-2850-51-83D PVC-C
159002163 Nerezová ocel Digital (S3L) 10 ISO 7/1 - R3/4 1.000 - 200.000 μS/cm 3-2850-51-84D PVC-C
159002164 Nerezová ocel 4 až 20 mA 0.01 3/4 inch MNPT 0.055 - 100 μS/cm 3-2850-52-81 PVC-C
159002165 Nerezová ocel 4 až 20 mA 0.1 3/4 inch MNPT 1 - 1.000 μS/cm 3-2850-52-82 PVC-C
159002166 Nerezová ocel 4 až 20 mA 1 3/4 inch MNPT 10 - 10.000 μS/cm 3-2850-52-83 PVC-C
159002167 Nerezová ocel 4 až 20 mA 10 3/4 inch MNPT 1.000 - 200.000 μS/cm 3-2850-52-84 PVC-C
159002168 Nerezová ocel 4 až 20 mA 0.01 ISO 7/1 - R3/4 0.055 - 100 μS/cm 3-2850-52-81D PVC-C
159002169 Nerezová ocel 4 až 20 mA 0.1 ISO 7/1 - R3/4 1 - 1.000 μS/cm 3-2850-52-82D PVC-C
159002170 Nerezová ocel 4 až 20 mA 1 ISO 7/1 - R3/4 10 - 10.000 μS/cm 3-2850-52-83D PVC-C
159002171 Nerezová ocel 4 až 20 mA 10 ISO 7/1 - R3/4 1.000 - 200.000 μS/cm 3-2850-52-84D PVC-C

Downloads

Datasheet PDF 93,4 kB application/pdf
