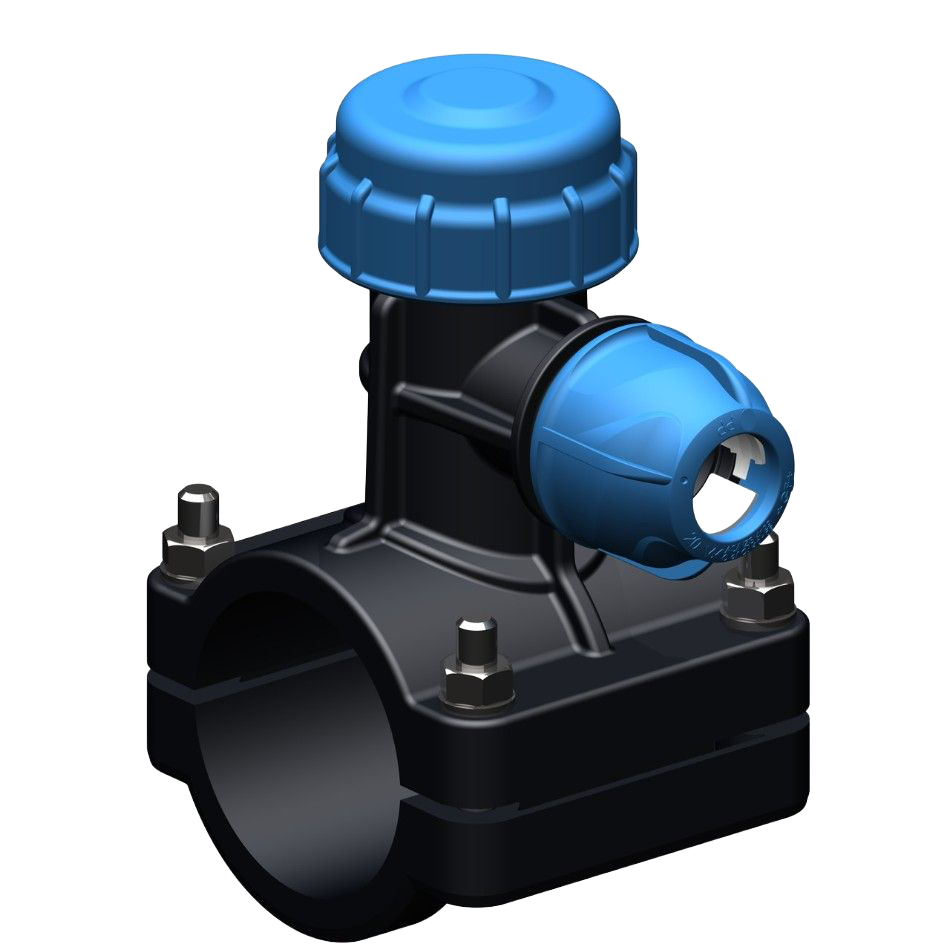

684C - Tapping Saddle for PE and PVC pipes with compression fitting offtake, flat gasket and stainless steel bolts and nuts
Manufacturer
GEORG FISCHER +GF+
Product description
- water PN16
- suitable for PE, PEX-a and PVC pipes
- material: PP
- cutter: brass
- offtake gasket: EPDM double lip
- saddle gasket: NBR O-ring with flat lip
- gasket: NBR O-ring sealing cup
- bolts and nuts: stainless steel
- colour: blue-black
- Key kit type (S = Small; M = Medium; L = Large)
- B= N° of bolts
- M= bolt type
- Further offtake sizes obtainable with iJOINT reduction kit
Product variants
| Product code | d1 [mm] | d [mm] | PN | M | B | Typ sady klíčů | |
|---|---|---|---|---|---|---|---|
| 158400702 | 32 | 63 | 16 | M8x50 | 4 | S |
Inquiry Enter quantity684C - Tapping Saddle for PE and PVC pipes with compression fitting offtake, flat gasket and stainless steel bolts and nuts · Product code 158400702 |
| 158400705 | 40 | 75 | 16 | M8x70 | 4 | M |
Inquiry Enter quantity684C - Tapping Saddle for PE and PVC pipes with compression fitting offtake, flat gasket and stainless steel bolts and nuts · Product code 158400705 |
| 158400708 | 40 | 90 | 16 | M8x70 | 4 | M |
Inquiry Enter quantity684C - Tapping Saddle for PE and PVC pipes with compression fitting offtake, flat gasket and stainless steel bolts and nuts · Product code 158400708 |
| 158400710 | 25 | 110 | 16 | M8x70 | 6 | M |
Inquiry Enter quantity684C - Tapping Saddle for PE and PVC pipes with compression fitting offtake, flat gasket and stainless steel bolts and nuts · Product code 158400710 |
| 158400711 | 32 | 110 | 16 | M8x70 | 6 | M |
Inquiry Enter quantity684C - Tapping Saddle for PE and PVC pipes with compression fitting offtake, flat gasket and stainless steel bolts and nuts · Product code 158400711 |
| 158400716 | 63 | 110 | 16 | M8x70 | 6 | L |
Inquiry Enter quantity684C - Tapping Saddle for PE and PVC pipes with compression fitting offtake, flat gasket and stainless steel bolts and nuts · Product code 158400716 |
| 158400718 | 32 | 125 | 16 | M8x70 | 6 | L |
Inquiry Enter quantity684C - Tapping Saddle for PE and PVC pipes with compression fitting offtake, flat gasket and stainless steel bolts and nuts · Product code 158400718 |
| 158400720 | 32 | 160 | 16 | M10x110 | 6 | L |
Inquiry Enter quantity684C - Tapping Saddle for PE and PVC pipes with compression fitting offtake, flat gasket and stainless steel bolts and nuts · Product code 158400720 |
| 158400723 | 63 | 160 | 16 | M10x110 | 6 | L |
Inquiry Enter quantity684C - Tapping Saddle for PE and PVC pipes with compression fitting offtake, flat gasket and stainless steel bolts and nuts · Product code 158400723 |
