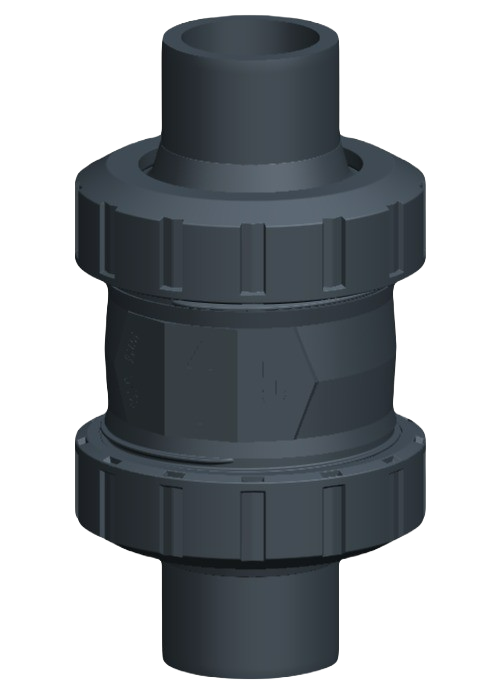

IR PVC-U check valve 561, with butt fusion spigots
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Sealing at a minimum water column of 2 m
- Designed for easy installation and removal
- Vibration free even at high flow velocity
- Flow-optimized return cone, double guided
- For vertical installation
- Compact installation length
- For welding on IR-63 Plus and IR-110 A
- Special Clamping inserts needed on IR-63 Plus and IR-110 A
- Only use Tangit KS Cleaner (799298023)
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | SDR | |
|---|---|---|---|---|---|---|
| 161561972 EPDM | 15 | 20 | 16 | 180 | 9 |
Inquiry Enter quantityIR PVC-U check valve 561, with butt fusion spigots · Product code 161561972 EPDM |
| 161561973 EPDM | 20 | 25 | 16 | 380 | 13.6 |
Inquiry Enter quantityIR PVC-U check valve 561, with butt fusion spigots · Product code 161561973 EPDM |
| 161561974 EPDM | 25 | 32 | 16 | 460 | 13.6 |
Inquiry Enter quantityIR PVC-U check valve 561, with butt fusion spigots · Product code 161561974 EPDM |
| 161561975 EPDM | 32 | 40 | 16 | 850 | 13.6 |
Inquiry Enter quantityIR PVC-U check valve 561, with butt fusion spigots · Product code 161561975 EPDM |
| 161561976 EPDM | 40 | 50 | 16 | 1080 | 13.6 |
Inquiry Enter quantityIR PVC-U check valve 561, with butt fusion spigots · Product code 161561976 EPDM |
| 161561977 EPDM | 50 | 63 | 16 | 1670 | 13.6 |
Inquiry Enter quantityIR PVC-U check valve 561, with butt fusion spigots · Product code 161561977 EPDM |
| 161561982 FKM | 15 | 20 | 16 | 180 | 9 |
Inquiry Enter quantityIR PVC-U check valve 561, with butt fusion spigots · Product code 161561982 FKM |
| 161561983 FKM | 20 | 25 | 16 | 380 | 13.6 |
Inquiry Enter quantityIR PVC-U check valve 561, with butt fusion spigots · Product code 161561983 FKM |
| 161561984 FKM | 25 | 32 | 16 | 460 | 13.6 |
Inquiry Enter quantityIR PVC-U check valve 561, with butt fusion spigots · Product code 161561984 FKM |
| 161561985 FKM | 32 | 40 | 16 | 850 | 13.6 |
Inquiry Enter quantityIR PVC-U check valve 561, with butt fusion spigots · Product code 161561985 FKM |
| 161561986 FKM | 40 | 50 | 16 | 1080 | 13.6 |
Inquiry Enter quantityIR PVC-U check valve 561, with butt fusion spigots · Product code 161561986 FKM |
| 161561987 FKM | 50 | 63 | 16 | 1670 | 13.6 |
Inquiry Enter quantityIR PVC-U check valve 561, with butt fusion spigots · Product code 161561987 FKM |
