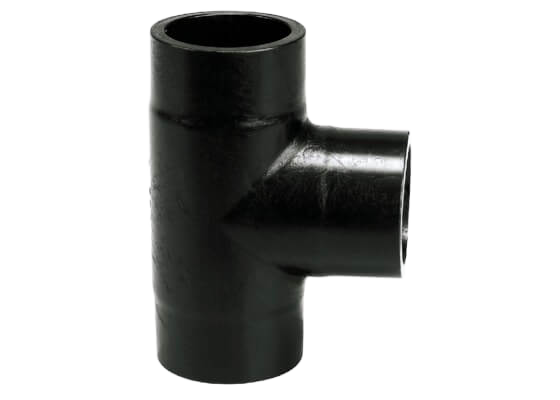

Tee 90° equal PE100, SDR17/17.6
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Material: PE100
- Conventional butt-welding according to DVS 2207
- IR = Infrared-(IR Plus) compatible. Choose fusion parameters: PE100
Product variants
| Product code | DN [mm] | FM | d [mm] | PN | SDR | |
|---|---|---|---|---|---|---|
| 753208510 | 40 | IR | 50 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208510 |
| 753208511 | 50 | IR | 63 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208511 |
| 753208412 | 65 | IR | 75 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208412 |
| 753208413 | 80 | IR | 90 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208413 |
| 753208414 | 100 | IR | 110 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208414 |
| 753208515 | 100 | IR | 125 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208515 |
| 753208516 | 125 | IR | 140 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208516 |
| 753208517 | 150 | IR | 160 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208517 |
| 753208518 | 150 | IR | 180 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208518 |
| 753208519 | 200 | IR | 200 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208519 |
| 753208520 | 200 | IR | 225 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208520 |
| 753208521 | 250 | - | 250 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208521 |
| 753208522 | 250 | - | 280 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208522 |
| 753208523 | 300 | - | 315 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208523 |
| 753208524 | 350 | - | 355 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208524 |
| 753208525 | 400 | - | 400 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208525 |
| 753208526 | 450 | - | 450 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208526 |
| 753208527 | 500 | - | 500 | 10 | 17/17.6 |
Inquiry Enter quantityTee 90° equal PE100, SDR17/17.6 · Product code 753208527 |
