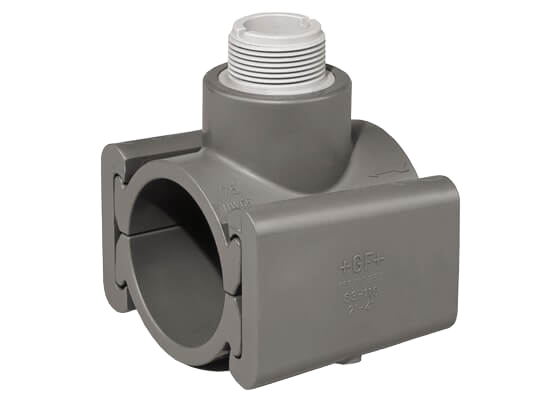

Clamp-on Saddle PVC-U BSP
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Saddle with threaded outlet 1 ¼" NPSM
- Top saddle for solvent cement bonding
- Seal: Lip seal EPDM
Range of use:
- Compatible Signet flow sensors: type 2551, 2537, 515, 8510, 2536, 8512
- Compatible Signet pH/ORP sensors: type 2724, 2725, 2726, 2734, 2736, 2735
Attention:
- sensor length depends on installation fitting
- These fittings are only available from your local Georg Fischer sales office
Product variants
| Product code | H [mm] | DN [mm] | D [mm] | Velikost [inch] | Typ 1 | PN | L [mm] | H1 [mm] | Typ senzoru | |
|---|---|---|---|---|---|---|---|---|---|---|
| 198150550 | 105 | 80 | 39 | 3 | PVAS030 | 15 | 105 | 225 | Průtok - X0, pH - XX |
Inquiry Enter quantityClamp-on Saddle PVC-U BSP · Product code 198150550 |
| 198150551 | 114 | 100 | 39 | 4 | PVAS040 | 15 | 105 | 264 | Průtok - X0, pH - XX |
Inquiry Enter quantityClamp-on Saddle PVC-U BSP · Product code 198150551 |
| 198150554 | 156 | 150 | 39 | 6 | PVAS060 | 15 | 120 | 339 | Průtok - X1 |
Inquiry Enter quantityClamp-on Saddle PVC-U BSP · Product code 198150554 |
