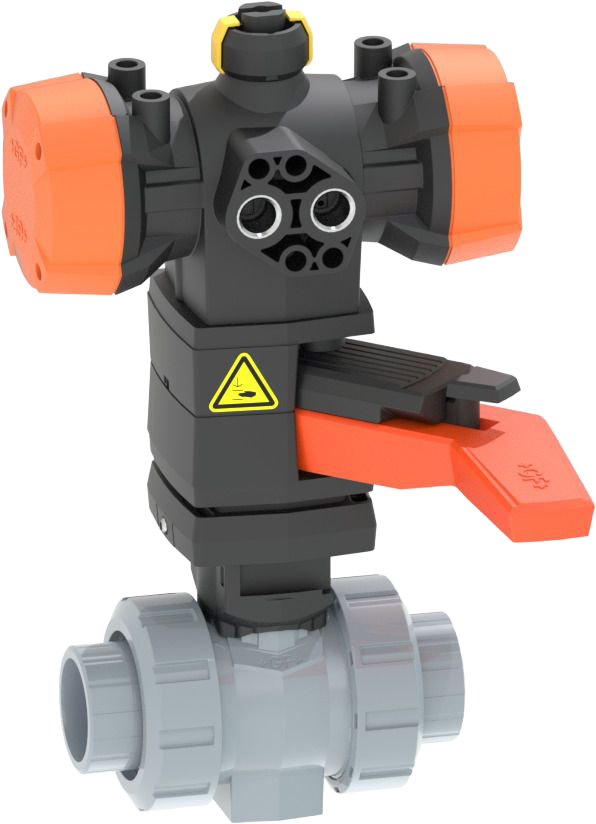

ABS Ball valve type 546 Pro with PPA FC (Fail / Safe to / Close) / With solvent cement sockets / ABS / ISO / With manual override
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Integrated stainless steel mounting inserts
- z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
Option:
- Position feedback through double sensor with LED (PNP, NPN and NAMUR)
- Positioner RPC, RPC D, RPC PID
- Individual configuration of valves possible
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199254702 EPDM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityABS Ball valve type 546 Pro with PPA FC (Fail / Safe to / Close) / With solvent cement sockets / ABS / ISO / With manual override · Product code 199254702 EPDM |
| 199254703 EPDM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityABS Ball valve type 546 Pro with PPA FC (Fail / Safe to / Close) / With solvent cement sockets / ABS / ISO / With manual override · Product code 199254703 EPDM |
| 199254704 EPDM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityABS Ball valve type 546 Pro with PPA FC (Fail / Safe to / Close) / With solvent cement sockets / ABS / ISO / With manual override · Product code 199254704 EPDM |
| 199254705 EPDM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityABS Ball valve type 546 Pro with PPA FC (Fail / Safe to / Close) / With solvent cement sockets / ABS / ISO / With manual override · Product code 199254705 EPDM |
| 199254706 EPDM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityABS Ball valve type 546 Pro with PPA FC (Fail / Safe to / Close) / With solvent cement sockets / ABS / ISO / With manual override · Product code 199254706 EPDM |
| 199254707 EPDM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityABS Ball valve type 546 Pro with PPA FC (Fail / Safe to / Close) / With solvent cement sockets / ABS / ISO / With manual override · Product code 199254707 EPDM |
| 199254708 EPDM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityABS Ball valve type 546 Pro with PPA FC (Fail / Safe to / Close) / With solvent cement sockets / ABS / ISO / With manual override · Product code 199254708 EPDM |
