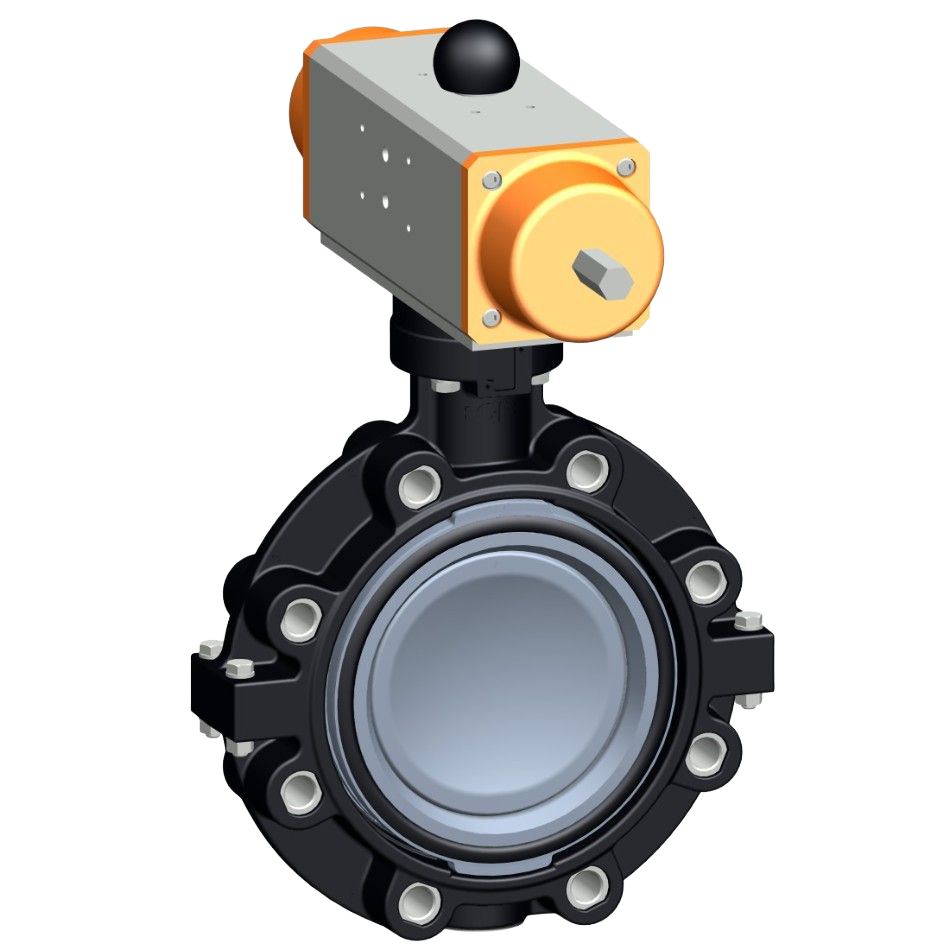

Lug-style butterfly valve type 244 ABS FC (Fail safe to close) Without manual override
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Housing material: PP-GF30 with SS316 lug-inserts
- Control range 90°<)
- Overall length according to EN 558, ISO 5752 (DN50 - 200 line 25, DN250 - 300 line 10)
- Connecting dimension ANSI/ASME B 16.5 Class 150
Option:
- Optional accessory: Valve-Integrated position feedback with limit switches (limit switches have to be ordered separately)
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199244402 EPDM | 50 | 2 | 63 | 10 | 740 |
Inquiry Enter quantityLug-style butterfly valve type 244 ABS FC (Fail safe to close) Without manual override · Product code 199244402 EPDM |
| 199244403 EPDM | 65 | 2 1/2 | 75 | 10 | 1500 |
Inquiry Enter quantityLug-style butterfly valve type 244 ABS FC (Fail safe to close) Without manual override · Product code 199244403 EPDM |
| 199244404 EPDM | 80 | 3 | 90 | 10 | 2400 |
Inquiry Enter quantityLug-style butterfly valve type 244 ABS FC (Fail safe to close) Without manual override · Product code 199244404 EPDM |
| 199244405 EPDM | 100 | 4 | 110 | 10 | 3800 |
Inquiry Enter quantityLug-style butterfly valve type 244 ABS FC (Fail safe to close) Without manual override · Product code 199244405 EPDM |
| 199244406 EPDM | 125 | 5 | 140 | 10 | 8600 |
Inquiry Enter quantityLug-style butterfly valve type 244 ABS FC (Fail safe to close) Without manual override · Product code 199244406 EPDM |
| 199244407 EPDM | 150 | 6 | 160 | 10 | 11400 |
Inquiry Enter quantityLug-style butterfly valve type 244 ABS FC (Fail safe to close) Without manual override · Product code 199244407 EPDM |
| 199244408 EPDM | 200 | 8 | 225 | 10 | 19900 |
Inquiry Enter quantityLug-style butterfly valve type 244 ABS FC (Fail safe to close) Without manual override · Product code 199244408 EPDM |
