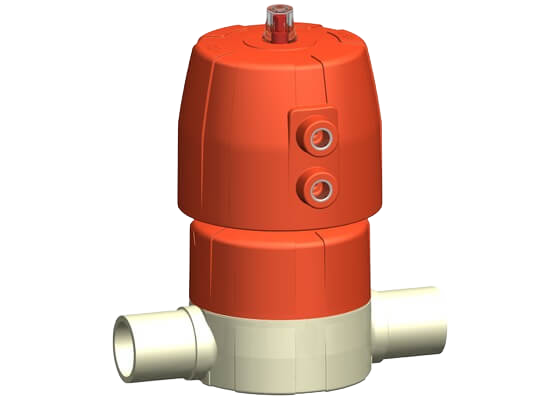

Diaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál: PP-R (bezbarvý)
- Dvojnásobně vyšší průtok ve srovnání se staršími typy
- Celoplastové závitové víko tělesa nahrazující 4 šrouby
- Otočná jednotka pro připojení ovládacího vzduchu v intervalech 90°
- Pracovní tlak: jednostranný
Další možnosti:
- Individuální konfigurace ventilu
- Široký sortiment příslušenství
* PN: PTFE
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 168645112 EPDM | 15 | 10/6* | 20 | 125 |
Inquiry Enter quantityDiaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric · Product code 168645112 EPDM |
| 168645113 EPDM | 20 | 10/6* | 25 | 271 |
Inquiry Enter quantityDiaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric · Product code 168645113 EPDM |
| 168645114 EPDM | 25 | 10/6* | 32 | 481 |
Inquiry Enter quantityDiaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric · Product code 168645114 EPDM |
| 168645115 EPDM | 32 | 10/6* | 40 | 759 |
Inquiry Enter quantityDiaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric · Product code 168645115 EPDM |
| 168645116 EPDM | 40 | 10/6* | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric · Product code 168645116 EPDM |
| 168645117 EPDM | 50 | 10/5* | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric · Product code 168645117 EPDM |
| 168645132 PTFE | 15 | 10/6* | 20 | 125 |
Inquiry Enter quantityDiaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric · Product code 168645132 PTFE |
| 168645133 PTFE | 20 | 10/6* | 25 | 271 |
Inquiry Enter quantityDiaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric · Product code 168645133 PTFE |
| 168645134 PTFE | 25 | 10/6* | 32 | 481 |
Inquiry Enter quantityDiaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric · Product code 168645134 PTFE |
| 168645135 PTFE | 32 | 10/6* | 40 | 759 |
Inquiry Enter quantityDiaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric · Product code 168645135 PTFE |
| 168645136 PTFE | 40 | 10/6* | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric · Product code 168645136 PTFE |
| 168645137 PTFE | 50 | 10/5* | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve DIASTAR 10 PROGEF Natural, FO (Fail safe to open), with butt fusion spigots SDR11 metric · Product code 168645137 PTFE |
