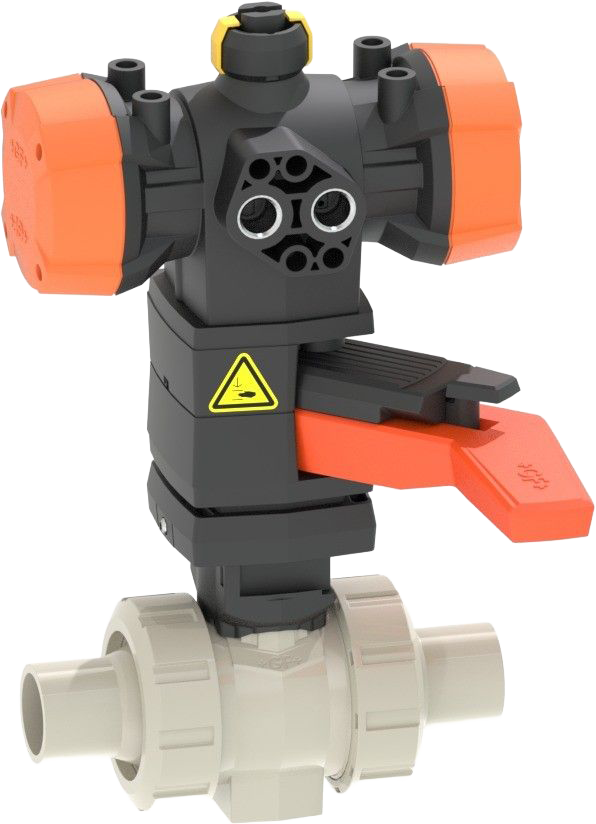

PP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845 with 5.6 bar (81.2 psi) E24:E25
- Control time 90°<) 1-2 s
- For easy installation and removal
- Integrated stainless steel mounting inserts
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Z-dimension, valve end and union nut are compatible with type 230 – 235 and 546 (1st Generation)
Option:
- Position feedback sensor, incl. LED feedback (DN10-50) - PNP, NPN and NAMUR
- Positioner RPC, RPC D, RPC PID
- Individual configuration of the valve
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 199251623 EPDM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric · Product code 199251623 EPDM |
| 199251624 EPDM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityPP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric · Product code 199251624 EPDM |
| 199251625 EPDM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityPP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric · Product code 199251625 EPDM |
| 199251626 EPDM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityPP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric · Product code 199251626 EPDM |
| 199251627 EPDM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityPP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric · Product code 199251627 EPDM |
| 199251628 EPDM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric · Product code 199251628 EPDM |
| 199251633 FKM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric · Product code 199251633 FKM |
| 199251634 FKM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityPP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric · Product code 199251634 FKM |
| 199251635 FKM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityPP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric · Product code 199251635 FKM |
| 199251636 FKM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityPP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric · Product code 199251636 FKM |
| 199251637 FKM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityPP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric · Product code 199251637 FKM |
| 199251638 FKM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPP-H Ball valve type 546 Pro with PPA ,FC (Fail safe to close)/With manual override/With butt fusion spigots IR-Plus SDR11 metric · Product code 199251638 FKM |
