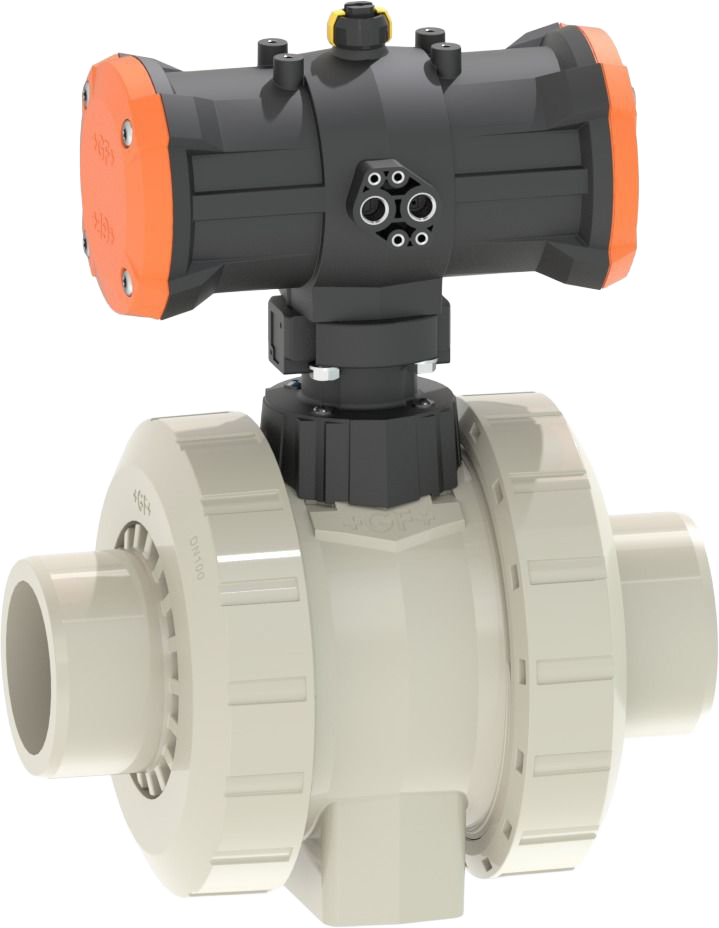

PROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845 with 5.6 bar (81.2 psi)
- Control time 90°<) 1-2s
- For easy installation and removal
- Integrated stainless steel mounting inserts
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Z-dimension, valve end and union nut are compatible with type 230 – 235 and 546 (1st Generation)
Option:
- Position feedback sensor, incl. LED feedback (DN10-50) - PNP, NPN and NAMUR
- Positioner RPC, RPC D, RPC PID
- Individual configuration of the valve
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 199251222 EPDM | 10 | 16 | 10 | 70 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251222 EPDM |
| 199251223 EPDM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251223 EPDM |
| 199251224 EPDM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251224 EPDM |
| 199251225 EPDM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251225 EPDM |
| 199251226 EPDM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251226 EPDM |
| 199251227 EPDM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251227 EPDM |
| 199251228 EPDM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251228 EPDM |
| 199251229 EPDM | 65 | 75 | 10 | 5000 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251229 EPDM |
| 199251230 EPDM | 80 | 90 | 10 | 7000 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251230 EPDM |
| 199251231 EPDM | 100 | 110 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251231 EPDM |
| 199251232 FKM | 10 | 16 | 10 | 70 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251232 FKM |
| 199251233 FKM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251233 FKM |
| 199251234 FKM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251234 FKM |
| 199251235 FKM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251235 FKM |
| 199251236 FKM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251236 FKM |
| 199251237 FKM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251237 FKM |
| 199251238 FKM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251238 FKM |
| 199251239 FKM | 65 | 75 | 10 | 5000 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251239 FKM |
| 199251240 FKM | 80 | 90 | 10 | 7000 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251240 FKM |
| 199251241 FKM | 100 | 110 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard Ball Valve Type 546 Pro with PPA DA (Double acting), With socket fusion spigots metric · Product code 199251241 FKM |
