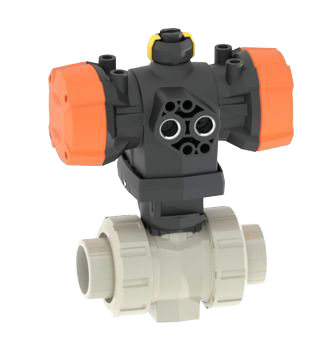

PROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Integrated stainless steel mounting inserts
- z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
Option:
- Position feedback through double sensor with LED (PNP, NPN and NAMUR)
- Positioner RPC, RPC D, RPC PID
- Individual configuration of valves possible
* PPA04 FC/FO allows the usage of DN10/15 (1/2”) ball valves with water as medium and operated in room temperature conditions (~20°C/68°F) only
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | # | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|---|
| 199255160 EPDM | 10 | 3/8 | 16 | 10 | * | 70 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199255160 EPDM |
| 199251122 EPDM | 10 | 3/8 | 16 | 10 | - | 70 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251122 EPDM |
| 199255161 EPDM | 15 | 1/2 | 20 | 10 | * | 185 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199255161 EPDM |
| 199251123 EPDM | 15 | 1/2 | 20 | 10 | - | 185 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251123 EPDM |
| 199251124 EPDM | 20 | 3/4 | 25 | 10 | - | 350 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251124 EPDM |
| 199251125 EPDM | 25 | 1 | 32 | 10 | - | 700 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251125 EPDM |
| 199251126 EPDM | 32 | 1 1/4 | 40 | 10 | - | 1000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251126 EPDM |
| 199251127 EPDM | 40 | 1 1/2 | 50 | 10 | - | 1600 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251127 EPDM |
| 199251128 EPDM | 50 | 2 | 63 | 10 | - | 3100 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251128 EPDM |
| 199251129 EPDM | 65 | 2 1/2 | 75 | 10 | - | 5000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251129 EPDM |
| 199251130 EPDM | 80 | 3 | 90 | 10 | - | 7000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251130 EPDM |
| 199251131 EPDM | 100 | 4 | 110 | 10 | - | 11000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251131 EPDM |
| 199255170 FKM | 10 | 3/8 | 16 | 10 | * | 70 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199255170 FKM |
| 199251132 FKM | 10 | 3/8 | 16 | 10 | - | 70 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251132 FKM |
| 199255171 FKM | 15 | 1/2 | 20 | 10 | * | 185 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199255171 FKM |
| 199251133 FKM | 15 | 1/2 | 20 | 10 | - | 185 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251133 FKM |
| 199251134 FKM | 20 | 3/4 | 25 | 10 | - | 350 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251134 FKM |
| 199251135 FKM | 25 | 1 | 32 | 10 | - | 700 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251135 FKM |
| 199251136 FKM | 32 | 1 1/4 | 40 | 10 | - | 1000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251136 FKM |
| 199251137 FKM | 40 | 1 1/2 | 50 | 10 | - | 1600 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251137 FKM |
| 199251138 FKM | 50 | 2 | 63 | 10 | - | 3100 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251138 FKM |
| 199251139 FKM | 65 | 2 1/2 | 75 | 10 | - | 5000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251139 FKM |
| 199251140 FKM | 80 | 3 | 90 | 10 | - | 7000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251140 FKM |
| 199251141 FKM | 100 | 4 | 110 | 10 | - | 11000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With fusion sockets / PP-H / ISO / Without manual override 5.6 bar control pressure · Product code 199251141 FKM |
