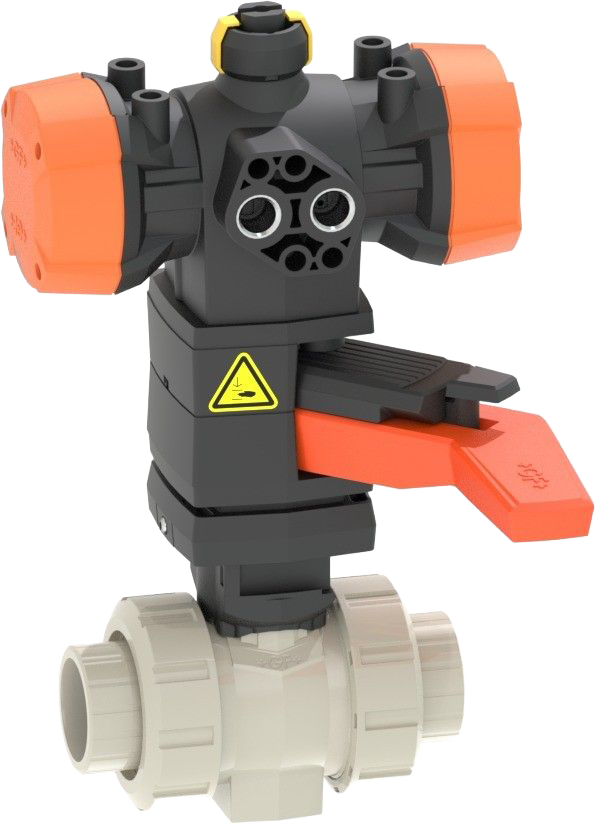

PROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845 with 4.2 bar (60.9 psi)
- Control time 90°<) 1-2s
- For easy installation and removal
- Integrated stainless steel mounting inserts
- Full plastic solution (actuator housing made of PP-GF)
- Z-dimension, valve end and union nut are compatible with type 230 – 235 and 546 (1st Generation)
Option:
- Position feedback sensor, incl. LED feedback (DN10-50) - PNP, NPN and NAMUR
- Positioner RPC, RPC D, RPC PID
- Individual configuration of the valve
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 199253783 EPDM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure · Product code 199253783 EPDM |
| 199253784 EPDM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure · Product code 199253784 EPDM |
| 199253785 EPDM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure · Product code 199253785 EPDM |
| 199253786 EPDM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure · Product code 199253786 EPDM |
| 199253787 EPDM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure · Product code 199253787 EPDM |
| 199253788 EPDM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure · Product code 199253788 EPDM |
| 199253793 FKM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure · Product code 199253793 FKM |
| 199253794 FKM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure · Product code 199253794 FKM |
| 199253795 FKM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure · Product code 199253795 FKM |
| 199253796 FKM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure · Product code 199253796 FKM |
| 199253797 FKM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure · Product code 199253797 FKM |
| 199253798 FKM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FC (Fail safe to close) / With manual override / With fusion sockets metric 4.2 bar control pressure · Product code 199253798 FKM |
