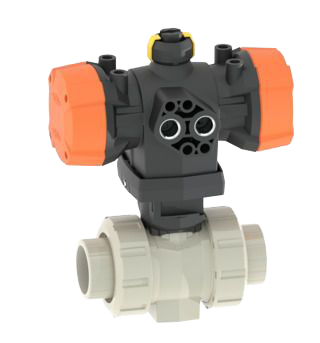

PROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Integrated stainless steel mounting inserts
- z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
Option:
- Position feedback through double sensor with LED (PNP, NPN and NAMUR)
- Positioner RPC, RPC D, RPC PID
- Individual configuration of valves possible
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 199251763 EPDM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure · Product code 199251763 EPDM |
| 199251764 EPDM | 20 | 25 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure · Product code 199251764 EPDM |
| 199251765 EPDM | 25 | 32 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure · Product code 199251765 EPDM |
| 199251766 EPDM | 32 | 40 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure · Product code 199251766 EPDM |
| 199251767 EPDM | 40 | 50 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure · Product code 199251767 EPDM |
| 199251768 EPDM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure · Product code 199251768 EPDM |
| 199251772 FKM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure · Product code 199251772 FKM |
| 199251773 FKM | 20 | 25 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure · Product code 199251773 FKM |
| 199251774 FKM | 25 | 32 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure · Product code 199251774 FKM |
| 199251775 FKM | 32 | 40 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure · Product code 199251775 FKM |
| 199251776 FKM | 40 | 50 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure · Product code 199251776 FKM |
| 199251777 FKM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) / With backing flanges / PP-H / ASME / Without manual override 5.6 bar control pressure · Product code 199251777 FKM |
