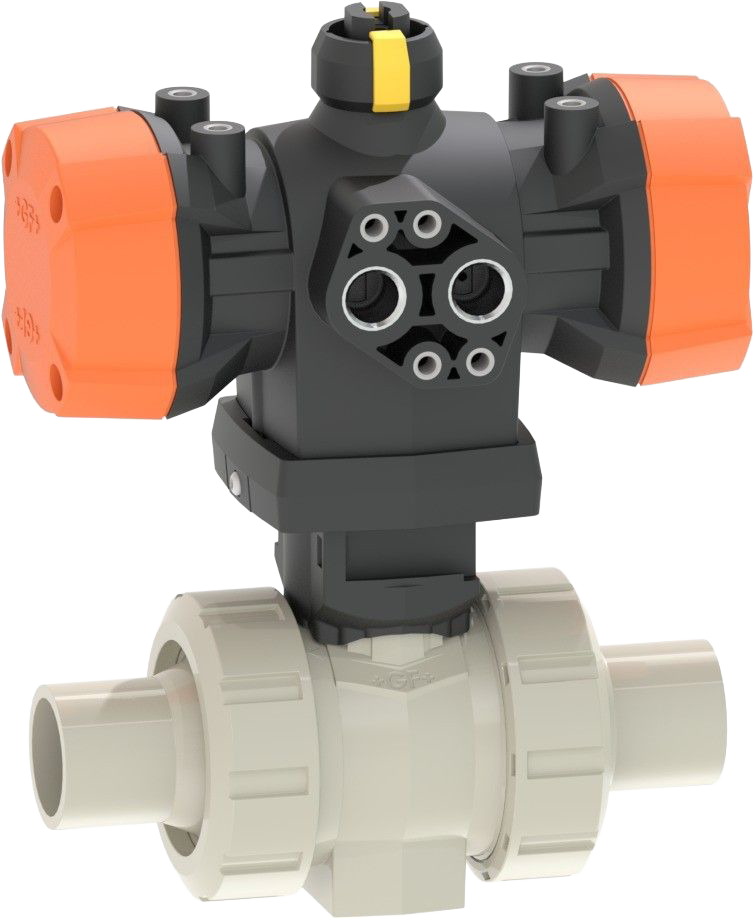

PROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845 with 5.6 bar (81.2 psi)
- Control time 90°<) 1-2s
- For easy installation and removal
- Integrated stainless steel mounting inserts
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Z-dimension, valve end and union nut are compatible with type 230 – 235 and 546 (1st Generation)
Option:
- Position feedback sensor, incl. LED feedback (DN10-50) - PNP, NPN and NAMUR
- Positioner RPC, RPC D, RPC PID
- Individual configuration of the valve
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 199251853 EPDM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251853 EPDM |
| 199251854 EPDM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251854 EPDM |
| 199251855 EPDM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251855 EPDM |
| 199251856 EPDM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251856 EPDM |
| 199251857 EPDM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251857 EPDM |
| 199251858 EPDM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251858 EPDM |
| 199251859 EPDM | 65 | 75 | 10 | 5000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251859 EPDM |
| 199251860 EPDM | 80 | 90 | 10 | 7000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251860 EPDM |
| 199251861 EPDM | 100 | 110 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251861 EPDM |
| 199251863 FKM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251863 FKM |
| 199251864 FKM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251864 FKM |
| 199251865 FKM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251865 FKM |
| 199251866 FKM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251866 FKM |
| 199251867 FKM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251867 FKM |
| 199251868 FKM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251868 FKM |
| 199251869 FKM | 65 | 75 | 10 | 5000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251869 FKM |
| 199251870 FKM | 80 | 90 | 10 | 7000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251870 FKM |
| 199251871 FKM | 100 | 110 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard PP-H Ball valve type 546 Pro with PPA FO (Fail safe to open) With butt fusion spigots IR-Plus SDR11 metric · Product code 199251871 FKM |
