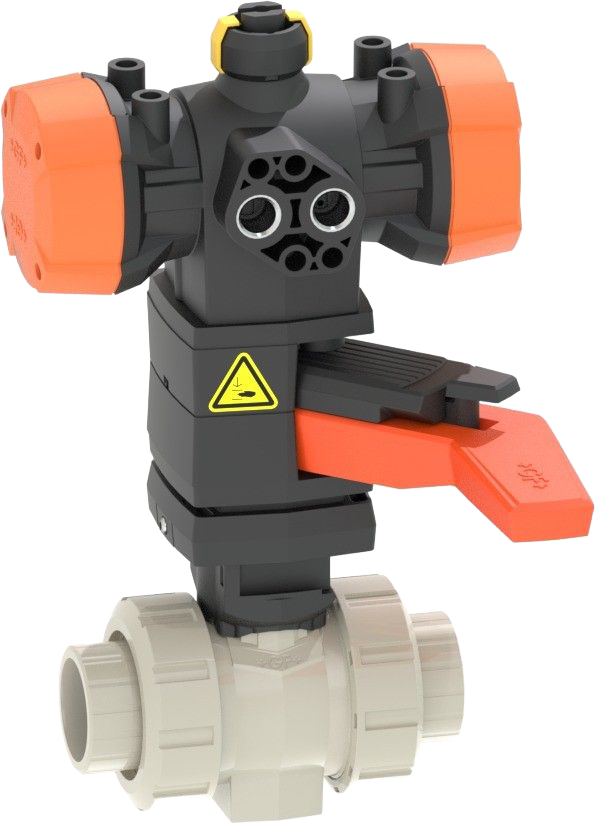

PROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Material: PP-H
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845 with 5.6 bar (81.2 psi) E24:E25
- Control time 90°<) 1-2 s
- For easy installation and removal
- Integrated stainless steel mounting inserts
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Z-dimension, valve end and union nut are compatible with type 230 – 235 and 546 (1st Generation)
Option:
- Position feedback sensor, incl. LED feedback (DN10-50) - PNP, NPN and NAMUR
- Positioner RPC, RPC D, RPC PID
- Individual configuration of the valve
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 199251042 EPDM | 10 | 16 | 10 | 70 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251042 EPDM |
| 199251043 EPDM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251043 EPDM |
| 199251044 EPDM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251044 EPDM |
| 199251045 EPDM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251045 EPDM |
| 199251046 EPDM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251046 EPDM |
| 199251047 EPDM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251047 EPDM |
| 199251048 EPDM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251048 EPDM |
| 199251052 FKM | 10 | 16 | 10 | 70 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251052 FKM |
| 199251053 FKM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251053 FKM |
| 199251054 FKM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251054 FKM |
| 199251055 FKM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251055 FKM |
| 199251056 FKM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251056 FKM |
| 199251057 FKM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251057 FKM |
| 199251058 FKM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF Standard, PP-H Ball valve type 546 Pro with PPA/ FO (Fail safe to open)/With manual override/With fusion sockets metric · Product code 199251058 FKM |
