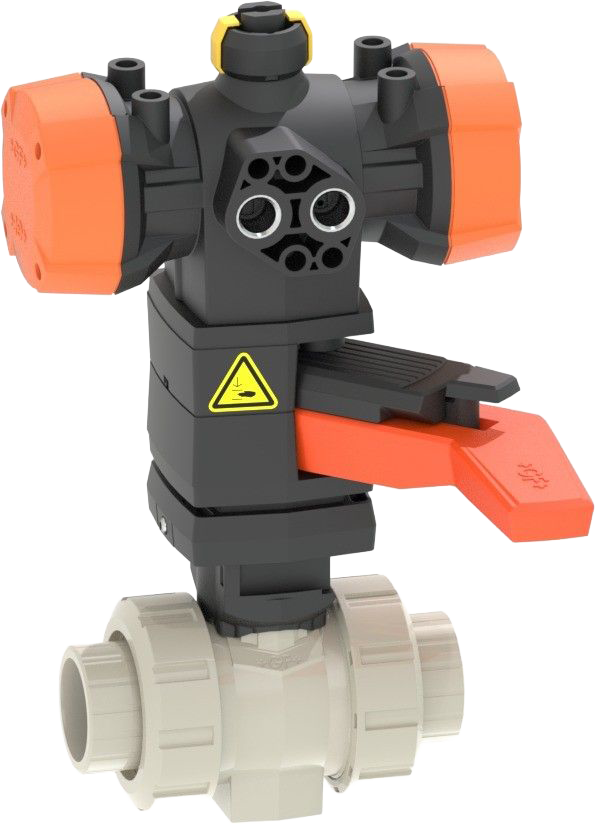

PROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845 with 5.6 bar (81.2 psi) E24:E25
- Control time 90°<) 1-2 s
- For easy installation and removal
- Integrated stainless steel mounting inserts
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Z-dimension, valve end and union nut are compatible with type 230 – 235 and 546 (1st Generation)
Option:
- Position feedback sensor, incl. LED feedback (DN10-50) - PNP, NPN and NAMUR
- Positioner RPC, RPC D, RPC PID
- Individual configuration of the valve
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 199251002 EPDM | 10 | 16 | 10 | 70 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251002 EPDM |
| 199251003 EPDM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251003 EPDM |
| 199251004 EPDM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251004 EPDM |
| 199251005 EPDM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251005 EPDM |
| 199251006 EPDM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251006 EPDM |
| 199251007 EPDM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251007 EPDM |
| 199251008 EPDM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251008 EPDM |
| 199251012 FKM | 10 | 16 | 10 | 70 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251012 FKM |
| 199251013 FKM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251013 FKM |
| 199251014 FKM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251014 FKM |
| 199251015 FKM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251015 FKM |
| 199251016 FKM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251016 FKM |
| 199251017 FKM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251017 FKM |
| 199251018 FKM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityPROGEF STANDARD, PP-H Ball valve type 546 Pro with PPA/FC (Fail safe to close)/With manual override/With fusion sockets metric · Product code 199251018 FKM |
