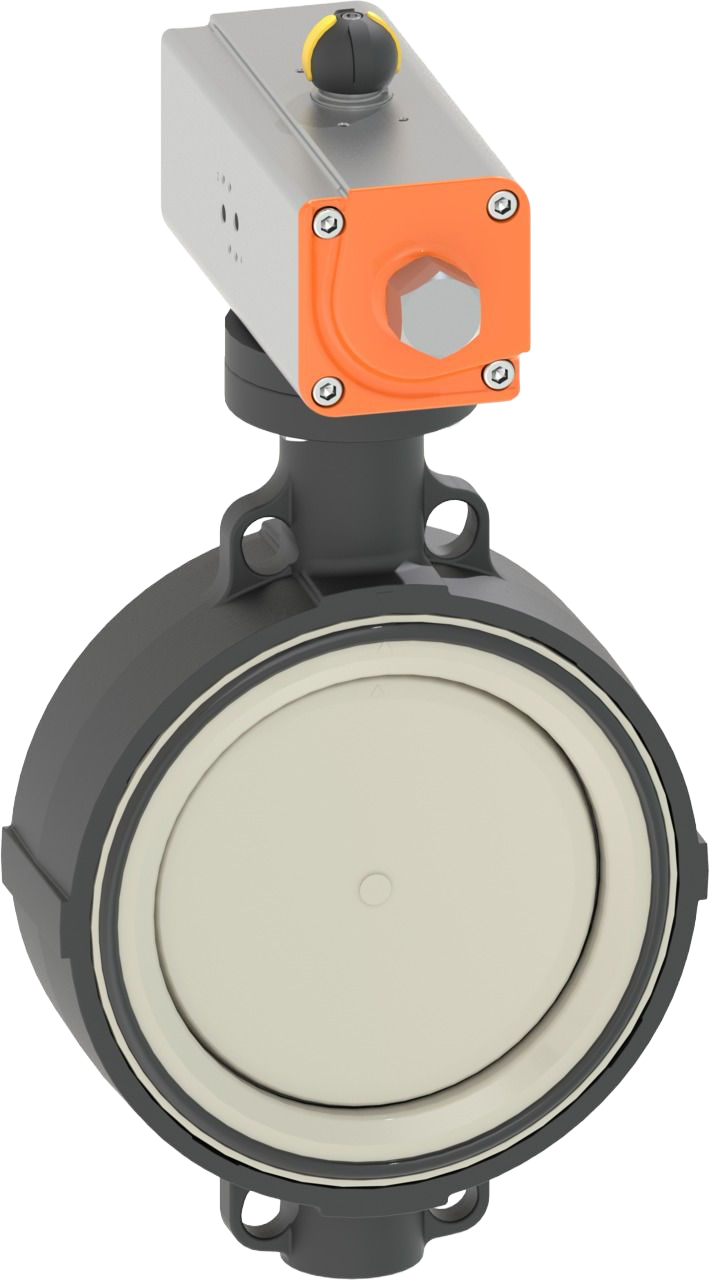

Butterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Material: PP-H, DN350-DN600 material PP-R
- Control range 90°<)
- Up to DN 300: Overall length according to EN558 (DN 50-200: line 25, DN250, 300 line 16), ISO 5752
- Connecting dimension: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10, ANSI/ASME B 16.5 Class 150, BS 1560: 1989, BS 4504, JIS B 2220
- For DN350-DN600 pneumatic actuator supplied by airpower „twintorque®“
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | # | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|---|
| 199240362 EPDM | 50 | 2 | 63 | 10 | - | 740 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240362 EPDM |
| 199240363 EPDM | 65 | 2 1/2 | 75 | 10 | - | 1500 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240363 EPDM |
| 199240364 EPDM | 80 | 3 | 90 | 10 | - | 2400 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240364 EPDM |
| 199240365 EPDM | 100 | 4 | 110 | 10 | - | 3800 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240365 EPDM |
| 199240366 EPDM | 125 | 5 | 140 | 10 | - | 8600 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240366 EPDM |
| 199240367 EPDM | 150 | 6 | 160 | 10 | - | 11400 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240367 EPDM |
| 199240368 EPDM | 200 | 8 | 225 | 10 | - | 19900 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240368 EPDM |
| 199240369 EPDM | 250 | 10 | 280 | 8 | - | 34000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240369 EPDM |
| 199240370 EPDM | 300 | 12 | 315 | 5 | - | 50000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240370 EPDM |
| 199240371 EPDM | 350 | 14 | 355 | 6 | * | 90000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240371 EPDM |
| 199240372 EPDM | 400 | 16 | 400 | 6 | * | 115000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240372 EPDM |
| 199240373 EPDM | 450 | 18 | 450 | 5 | * | 155000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240373 EPDM |
| 199240374 EPDM | 500 | 20 | 500 | 4 | * | 204000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240374 EPDM |
| 199240375 EPDM | 600 | 24 | 630 | 4 | * | 265000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240375 EPDM |
| 199240382 FKM | 50 | 2 | 63 | 10 | - | 740 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240382 FKM |
| 199240742 PTFE | 50 | 2 | 63 | 10 | - | 740 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240742 PTFE |
| 199240383 FKM | 65 | 2 1/2 | 75 | 10 | - | 1500 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240383 FKM |
| 199240743 PTFE | 65 | 2 1/2 | 75 | 10 | - | 1500 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240743 PTFE |
| 199240384 FKM | 80 | 3 | 90 | 10 | - | 2400 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240384 FKM |
| 199240744 PTFE | 80 | 3 | 90 | 10 | - | 2400 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240744 PTFE |
| 199240385 FKM | 100 | 4 | 110 | 10 | - | 3800 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240385 FKM |
| 199240745 PTFE | 100 | 4 | 110 | 10 | - | 3800 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240745 PTFE |
| 199240386 FKM | 125 | 5 | 140 | 10 | - | 8600 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240386 FKM |
| 199240746 PTFE | 125 | 5 | 140 | 10 | - | 8600 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240746 PTFE |
| 199240387 FKM | 150 | 6 | 160 | 10 | - | 11400 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240387 FKM |
| 199240747 PTFE | 150 | 6 | 160 | 10 | - | 11400 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240747 PTFE |
| 199240388 FKM | 200 | 8 | 225 | 10 | - | 19900 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240388 FKM |
| 199240748 PTFE | 200 | 8 | 225 | 10 | - | 19900 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240748 PTFE |
| 199240389 FKM | 250 | 10 | 280 | 8 | - | 34000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240389 FKM |
| 199240749 PTFE | 250 | 10 | 280 | 8 | - | 34000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240749 PTFE |
| 199240390 FKM | 300 | 12 | 315 | 5 | - | 50000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240390 FKM |
| 199240750 PTFE | 300 | 12 | 315 | 5 | - | 50000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240750 PTFE |
| 199240391 FKM | 350 | 14 | 355 | 6 | * | 90000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240391 FKM |
| 199240751 PTFE | 350 | 14 | 355 | 6 | * | 90000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240751 PTFE |
| 199240392 FKM | 400 | 16 | 400 | 6 | * | 115000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240392 FKM |
| 199240752 PTFE | 400 | 16 | 400 | 6 | * | 115000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240752 PTFE |
| 199240393 FKM | 450 | 18 | 450 | 5 | * | 155000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240393 FKM |
| 199240753 PTFE | 450 | 18 | 450 | 5 | * | 155000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240753 PTFE |
| 199240394 FKM | 500 | 20 | 500 | 4 | * | 204000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240394 FKM |
| 199240754 PTFE | 500 | 20 | 500 | 4 | * | 204000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240754 PTFE |
| 199240395 FKM | 600 | 24 | 630 | 4 | * | 265000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240395 FKM |
| 199240755 PTFE | 600 | 24 | 630 | 4 | * | 265000 |
Inquiry Enter quantityButterfly valve type 240 PROGEF Standard, DA (Double acting), without manual override · Product code 199240755 PTFE |
