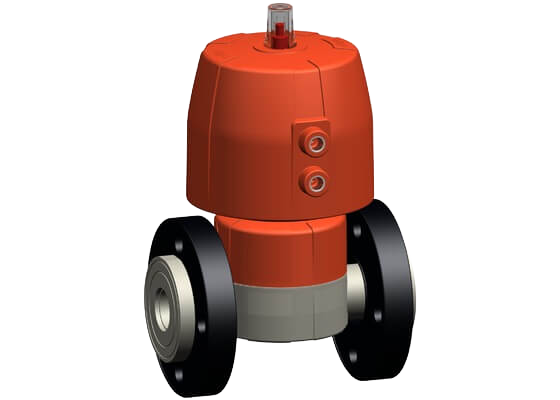

Diaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál: PP-H
- Dvojnásobně vyšší průtok ve srovnání se staršími typy
- Celoplastové závitové víko tělesa nahrazující 4 šrouby
- Těsnící plocha hladká/vroubkovaná
- Otočná jednotka pro připojení ovládacího vzduchu v intervalech 90°
- Celková stavební délka dle EN 558
- Připojovací rozměry: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10,
BS 4504 PN 10 - Pracovní tlak: oboustranný
Další možnosti:
- Individuální konfigurace ventilu
- Široký sortiment příslušenství
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 167687112 EPDM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687112 EPDM |
| 167687113 EPDM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687113 EPDM |
| 167687114 EPDM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687114 EPDM |
| 167687115 EPDM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687115 EPDM |
| 167687116 EPDM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687116 EPDM |
| 167687117 EPDM | 50 | 10 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687117 EPDM |
| 167687162 FKM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687162 FKM |
| 167687132 PTFE/EPDM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687132 PTFE/EPDM |
| 167687152 PTFE/FKM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687152 PTFE/FKM |
| 167687163 FKM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687163 FKM |
| 167687133 PTFE/EPDM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687133 PTFE/EPDM |
| 167687153 PTFE/FKM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687153 PTFE/FKM |
| 167687164 FKM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687164 FKM |
| 167687134 PTFE/EPDM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687134 PTFE/EPDM |
| 167687154 PTFE/FKM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687154 PTFE/FKM |
| 167687165 FKM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687165 FKM |
| 167687135 PTFE/EPDM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687135 PTFE/EPDM |
| 167687155 PTFE/FKM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687155 PTFE/FKM |
| 167687166 FKM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687166 FKM |
| 167687136 PTFE/EPDM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687136 PTFE/EPDM |
| 167687156 PTFE/FKM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687156 PTFE/FKM |
| 167687167 FKM | 50 | 10 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687167 FKM |
| 167687137 PTFE/EPDM | 50 | 10 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687137 PTFE/EPDM |
| 167687157 PTFE/FKM | 50 | 10 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with backing flanges PP-V metric/BS · Product code 167687157 PTFE/FKM |
