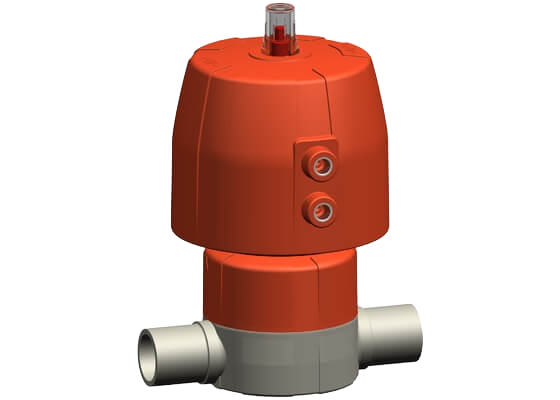

Diaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál: PP-H
- Dvojnásobně vyšší průtok ve srovnání se staršími typy
- Celoplastové závitové víko tělesa nahrazující 4 šrouby
- Otočná jednotka pro připojení ovládacího vzduchu v intervalech 90°
- Krátká celková stavební délka
- Pracovní tlak: oboustranný
Další možnosti:
- Individuální konfigurace ventilu
- Široký sortiment příslušenství
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 167685112 EPDM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric · Product code 167685112 EPDM |
| 167685113 EPDM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric · Product code 167685113 EPDM |
| 167685114 EPDM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric · Product code 167685114 EPDM |
| 167685115 EPDM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric · Product code 167685115 EPDM |
| 167685116 EPDM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric · Product code 167685116 EPDM |
| 167685117 EPDM | 50 | 10 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric · Product code 167685117 EPDM |
| 167685132 PTFE/EPDM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric · Product code 167685132 PTFE/EPDM |
| 167685133 PTFE/EPDM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric · Product code 167685133 PTFE/EPDM |
| 167685134 PTFE/EPDM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric · Product code 167685134 PTFE/EPDM |
| 167685135 PTFE/EPDM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric · Product code 167685135 PTFE/EPDM |
| 167685136 PTFE/EPDM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric · Product code 167685136 PTFE/EPDM |
| 167685137 PTFE/EPDM | 50 | 10 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PROGEF Standard, FC (Fail safe to close), with butt fusion spigots SDR11 metric · Product code 167685137 PTFE/EPDM |
