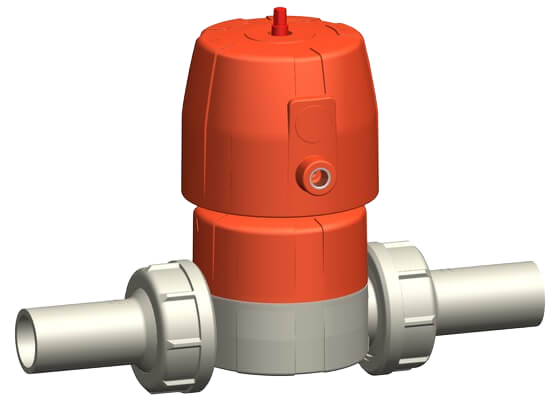

Diaphragm valve type DIASTAR 6 PROGEF Standard, FC (Fail safe to close), Union with butt fusion spigots SDR11 metric
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál: PP-H
- Dvojnásobně vyšší průtok ve srovnání se staršími typy
- Celoplastové závitové víko tělesa nahrazující 4 šrouby
- Otočná jednotka pro připojení ovládacího vzduchu v intervalech 90°
- Jednoduchá montáž a demontáž
- Krátká celková stavební délka
Další možnosti:
- Individuální konfigurace ventilu
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 167614113 EPDM | 20 | 6 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 6 PROGEF Standard, FC (Fail safe to close), Union with butt fusion spigots SDR11 metric · Product code 167614113 EPDM |
| 167614114 EPDM | 25 | 6 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 6 PROGEF Standard, FC (Fail safe to close), Union with butt fusion spigots SDR11 metric · Product code 167614114 EPDM |
| 167614115 EPDM | 32 | 6 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 6 PROGEF Standard, FC (Fail safe to close), Union with butt fusion spigots SDR11 metric · Product code 167614115 EPDM |
| 167614116 EPDM | 40 | 6 | 50 | 960 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 6 PROGEF Standard, FC (Fail safe to close), Union with butt fusion spigots SDR11 metric · Product code 167614116 EPDM |
| 167614117 EPDM | 50 | 6 | 63 | 1181 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 6 PROGEF Standard, FC (Fail safe to close), Union with butt fusion spigots SDR11 metric · Product code 167614117 EPDM |
| 800047262 FKM | 20 | 6 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 6 PROGEF Standard, FC (Fail safe to close), Union with butt fusion spigots SDR11 metric · Product code 800047262 FKM |
| 800047263 FKM | 25 | 6 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 6 PROGEF Standard, FC (Fail safe to close), Union with butt fusion spigots SDR11 metric · Product code 800047263 FKM |
| 800047259 FKM | 32 | 6 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 6 PROGEF Standard, FC (Fail safe to close), Union with butt fusion spigots SDR11 metric · Product code 800047259 FKM |
| 800047264 FKM | 40 | 6 | 50 | 960 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 6 PROGEF Standard, FC (Fail safe to close), Union with butt fusion spigots SDR11 metric · Product code 800047264 FKM |
| 800047265 FKM | 50 | 6 | 63 | 1181 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 6 PROGEF Standard, FC (Fail safe to close), Union with butt fusion spigots SDR11 metric · Product code 800047265 FKM |
