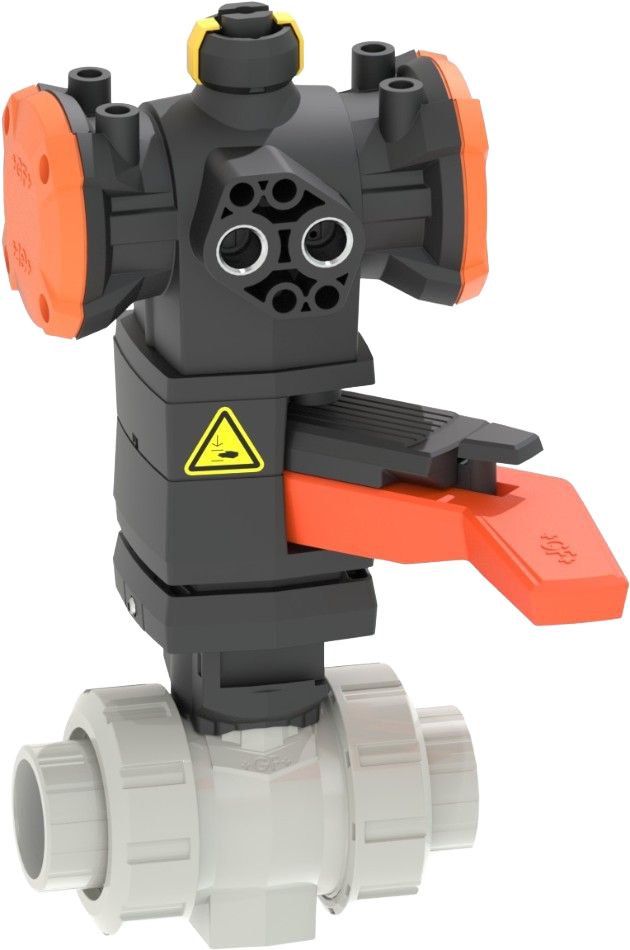

PVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override
Manufacturer
GEORG FISCHER +GF+
Product description
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Integrated stainless steel mounting inserts
- z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
- Position feedback through double sensor with LED (PNP, NPN and NAMUR)
- Positioner RPC, RPC D, RPC PID
- Individual configuration of valves possible
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199250832 EPDM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250832 EPDM |
| 199250833 EPDM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250833 EPDM |
| 199250834 EPDM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250834 EPDM |
| 199250835 EPDM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250835 EPDM |
| 199250836 EPDM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250836 EPDM |
| 199250837 EPDM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250837 EPDM |
| 199250838 EPDM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250838 EPDM |
| 199250852 FKM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250852 FKM |
| 199250853 FKM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250853 FKM |
| 199250854 FKM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250854 FKM |
| 199250855 FKM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250855 FKM |
| 199250856 FKM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250856 FKM |
| 199250857 FKM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250857 FKM |
| 199250858 FKM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPVC-C Ball valve type 546 Pro with PPA DA (Double Acting) With threaded sockets PVC-C ISO Rp With manual override · Product code 199250858 FKM |
