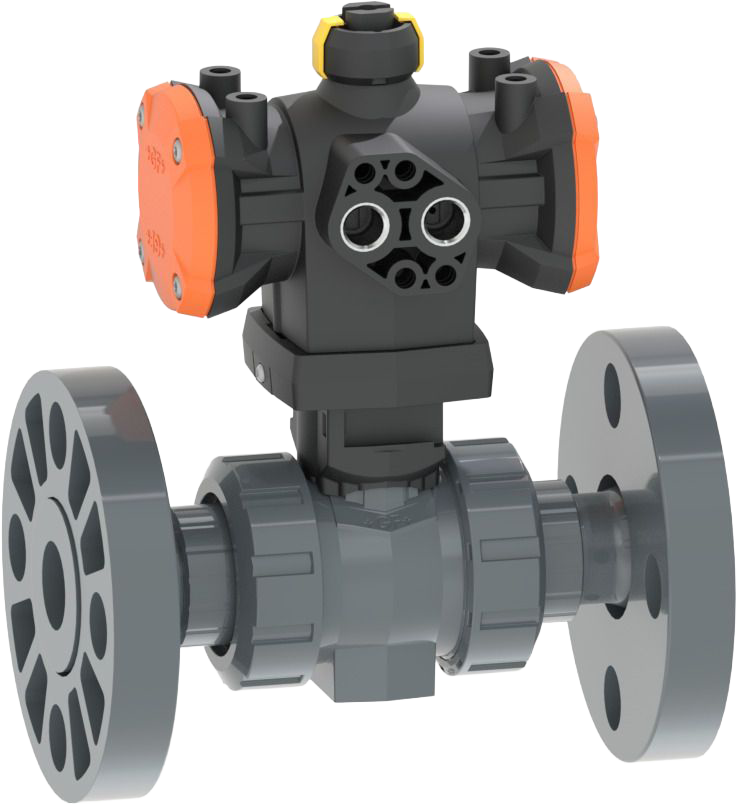

PVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Integrated stainless steel mounting inserts
- z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
Option:
- Position feedback through double sensor with LED (PNP, NPN and NAMUR)
- Positioner RPC, RPC D, RPC PID
- Individual configuration of valves possible
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199253763 EPDM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253763 EPDM |
| 199253764 EPDM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253764 EPDM |
| 199253765 EPDM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253765 EPDM |
| 199253766 EPDM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253766 EPDM |
| 199253767 EPDM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253767 EPDM |
| 199253768 EPDM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253768 EPDM |
| 199253769 EPDM | 65 | 2 1/2 | 75 | 10 | 5000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253769 EPDM |
| 199253770 EPDM | 80 | 3 | 90 | 10 | 7000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253770 EPDM |
| 199253771 EPDM | 100 | 4 | 110 | 10 | 11000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253771 EPDM |
| 199253773 FKM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253773 FKM |
| 199253774 FKM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253774 FKM |
| 199253775 FKM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253775 FKM |
| 199253776 FKM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253776 FKM |
| 199253777 FKM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253777 FKM |
| 199253778 FKM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253778 FKM |
| 199253779 FKM | 65 | 2 1/2 | 75 | 10 | 5000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253779 FKM |
| 199253780 FKM | 80 | 3 | 90 | 10 | 7000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253780 FKM |
| 199253781 FKM | 100 | 4 | 110 | 10 | 11000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA DA (Double acting) / With backing flanges / PVC-U / ASME / Without manual override 5.6 bar control pressure · Product code 199253781 FKM |
