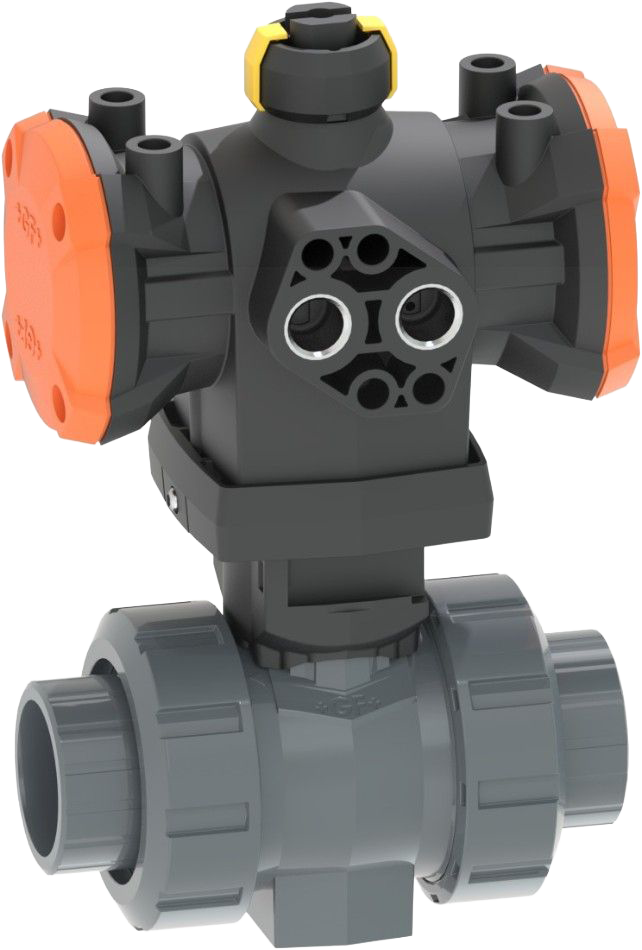

PVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845 with 5.6 bar (81.2 psi) E24:E25
- Control time 90°<) 1-2 s
- For easy installation and removal
- Integrated stainless steel mounting inserts
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Z-dimension, valve end and union nut are compatible with type 230 – 235 and 546 (1st Generation)
Option:
- Position feedback sensor, incl. LED feedback (DN10-50) - PNP, NPN and NAMUR
- Positioner RPC, RPC D, RPC PID
- Individual configuration of the valve
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199253102 EPDM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253102 EPDM |
| 199253103 EPDM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253103 EPDM |
| 199253104 EPDM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253104 EPDM |
| 199253105 EPDM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253105 EPDM |
| 199253106 EPDM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253106 EPDM |
| 199253107 EPDM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253107 EPDM |
| 199253108 EPDM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253108 EPDM |
| 199253109 EPDM | 65 | 2 1/2 | 75 | 10 | 5000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253109 EPDM |
| 199253110 EPDM | 80 | 3 | 90 | 10 | 7000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253110 EPDM |
| 199253111 EPDM | 100 | 4 | 110 | 10 | 11000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253111 EPDM |
| 199253112 FKM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253112 FKM |
| 199253113 FKM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253113 FKM |
| 199253114 FKM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253114 FKM |
| 199253115 FKM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253115 FKM |
| 199253116 FKM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253116 FKM |
| 199253117 FKM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253117 FKM |
| 199253118 FKM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253118 FKM |
| 199253119 FKM | 65 | 2 1/2 | 75 | 10 | 5000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253119 FKM |
| 199253120 FKM | 80 | 3 | 90 | 10 | 7000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253120 FKM |
| 199253121 FKM | 100 | 4 | 110 | 10 | 11000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, DA (Double acting)/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253121 FKM |
