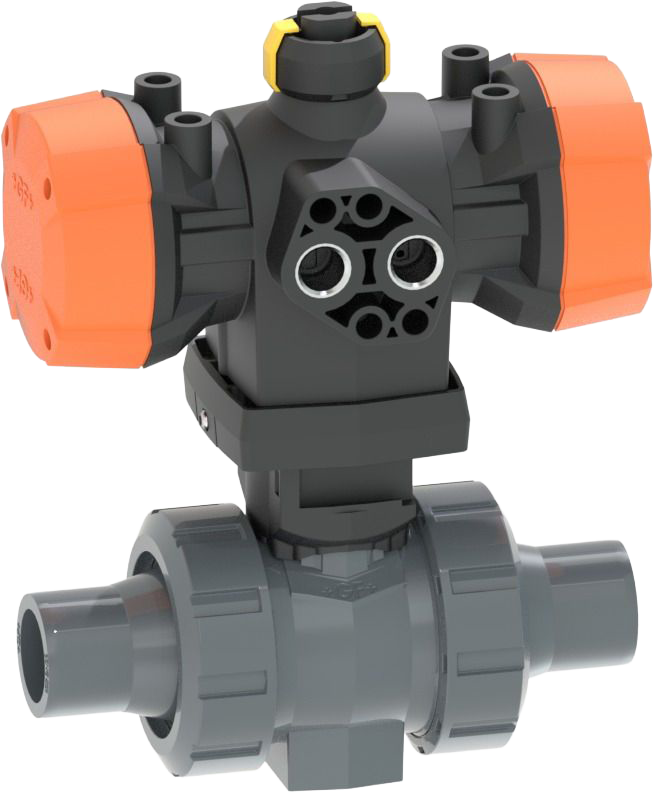

PVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Integrated stainless steel mounting inserts
- z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
Option:
- Position feedback through double sensor with LED (PNP, NPN and NAMUR)
- Positioner RPC, RPC D, RPC PID
- Individual configuration of valves possible
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199250142 EPDM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250142 EPDM |
| 199250143 EPDM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250143 EPDM |
| 199250144 EPDM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250144 EPDM |
| 199250145 EPDM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250145 EPDM |
| 199250146 EPDM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250146 EPDM |
| 199250147 EPDM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250147 EPDM |
| 199250148 EPDM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250148 EPDM |
| 199250149 EPDM | 65 | 2 1/2 | 75 | 10 | 5000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250149 EPDM |
| 199250150 EPDM | 80 | 3 | 90 | 10 | 7000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250150 EPDM |
| 199250151 EPDM | 100 | 4 | 110 | 10 | 11000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250151 EPDM |
| 199250152 FKM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250152 FKM |
| 199250153 FKM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250153 FKM |
| 199250154 FKM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250154 FKM |
| 199250155 FKM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250155 FKM |
| 199250156 FKM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250156 FKM |
| 199250157 FKM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250157 FKM |
| 199250158 FKM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250158 FKM |
| 199250159 FKM | 65 | 2 1/2 | 75 | 10 | 5000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250159 FKM |
| 199250160 FKM | 80 | 3 | 90 | 10 | 7000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250160 FKM |
| 199250161 FKM | 100 | 4 | 110 | 10 | 11000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA FC (Fail safe to close) / With solvent cement spigots / PVC-U / ISO / Without manual override 5.6 bar control pressure · Product code 199250161 FKM |
