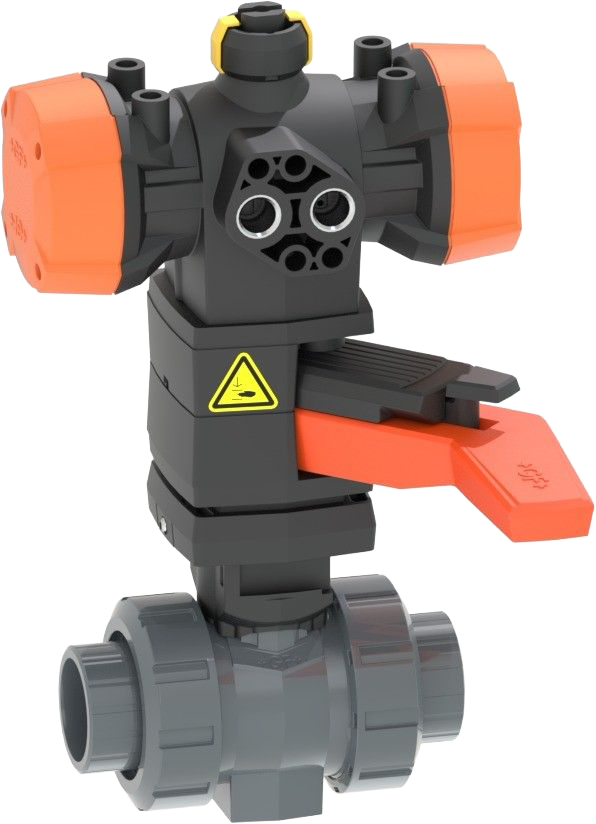

PVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845 with 5.6 bar (81.2 psi) E24:E25
- Control time 90°<) 1-2 s
- For easy installation and removal
- Integrated stainless steel mounting inserts
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Z-dimension, valve end and union nut are compatible with type 230 – 235 and 546 (1st Generation)
Option:
- Position feedback sensor, incl. LED feedback (DN10-50) - PNP, NPN and NAMUR
- Positioner RPC, RPC D, RPC PID
- Individual configuration of the valve
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199253002 EPDM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253002 EPDM |
| 199253003 EPDM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253003 EPDM |
| 199253004 EPDM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253004 EPDM |
| 199253005 EPDM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253005 EPDM |
| 199253006 EPDM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253006 EPDM |
| 199253007 EPDM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253007 EPDM |
| 199253008 EPDM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253008 EPDM |
| 199253012 FKM | 10 | 3/8 | 16 | 10 | 70 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253012 FKM |
| 199253013 FKM | 15 | 1/2 | 20 | 10 | 185 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253013 FKM |
| 199253014 FKM | 20 | 3/4 | 25 | 10 | 350 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253014 FKM |
| 199253015 FKM | 25 | 1 | 32 | 10 | 700 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253015 FKM |
| 199253016 FKM | 32 | 1 1/4 | 40 | 10 | 1000 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253016 FKM |
| 199253017 FKM | 40 | 1 1/2 | 50 | 10 | 1600 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253017 FKM |
| 199253018 FKM | 50 | 2 | 63 | 10 | 3100 |
Inquiry Enter quantityPVC-U Ball valve type 546 Pro with PPA, FC (Fail safe to close)/With manual override/With solvent cement sockets Inch ASTM/Inclusive 2 threaded valve ends NPT · Product code 199253018 FKM |
