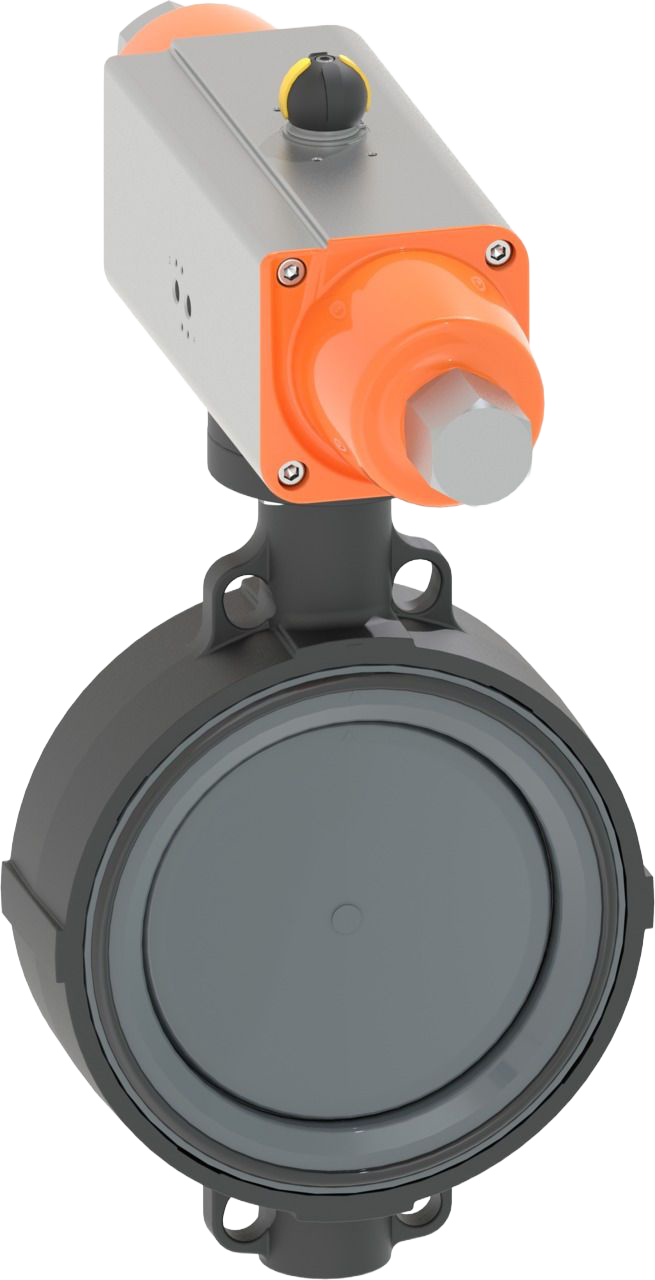

Butterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control range 90°<)
- Overall length according to EN 558, ISO 5752
- Connecting dimension: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10, ANSI/ASME B 16.5 Class 150, BS 1560: 1989, BS 4504, JIS B 2220
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199240002 EPDM | 50 | 2 | 63 | 10 | 740 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240002 EPDM |
| 199240003 EPDM | 65 | 2 1/2 | 75 | 10 | 1500 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240003 EPDM |
| 199240004 EPDM | 80 | 3 | 90 | 10 | 2400 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240004 EPDM |
| 199240005 EPDM | 100 | 4 | 110 | 10 | 3800 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240005 EPDM |
| 199240006 EPDM | 125 | 5 | 140 | 10 | 8600 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240006 EPDM |
| 199240007 EPDM | 150 | 6 | 160 | 10 | 11400 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240007 EPDM |
| 199240008 EPDM | 200 | 8 | 225 | 10 | 19900 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240008 EPDM |
| 199240009 EPDM | 250 | 10 | 280 | 10 | 34000 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240009 EPDM |
| 199240010 EPDM | 300 | 12 | 315 | 5 | 50000 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240010 EPDM |
| 199240022 FKM | 50 | 2 | 63 | 10 | 740 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240022 FKM |
| 199240023 FKM | 65 | 2 1/2 | 75 | 10 | 1500 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240023 FKM |
| 199240024 FKM | 80 | 3 | 90 | 10 | 2400 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240024 FKM |
| 199240025 FKM | 100 | 4 | 110 | 10 | 3800 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240025 FKM |
| 199240026 FKM | 125 | 5 | 140 | 10 | 8600 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240026 FKM |
| 199240027 FKM | 150 | 6 | 160 | 10 | 11400 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240027 FKM |
| 199240028 FKM | 200 | 8 | 225 | 10 | 19900 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240028 FKM |
| 199240029 FKM | 250 | 10 | 280 | 10 | 34000 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240029 FKM |
| 199240030 FKM | 300 | 12 | 315 | 5 | 50000 |
Inquiry Enter quantityButterfly valve type 240 PVC-U, FC (Fail safe to close), without manual override · Product code 199240030 FKM |
