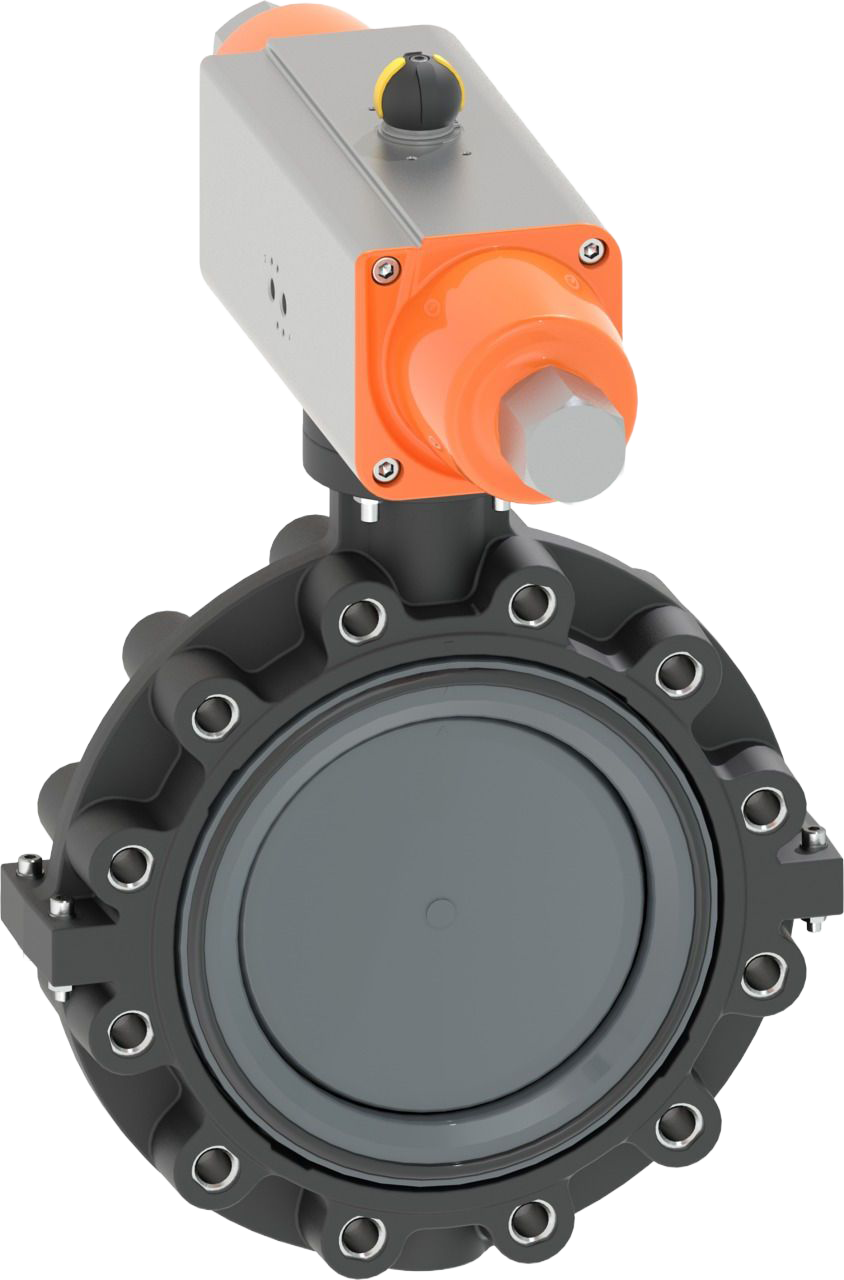

Butterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Housing material: PP-GF30 with SS316 lug-inserts
- Control range 90°<)
- Overall length according to EN 558, ISO 5752 (DN50 - 200 line 25, DN250 - 300 line 10)
- Connecting dimension: ISO 7005 PN10, EN 1092 PN10, DIN 2501 PN10
Option:
- Optional accessory: Valve-Integrated position feedback with limit switches (limit switches have to be ordered separately)
Note:
- For some material combination (e.g. DN300 valves with PE/PP pipes) special flange adapters are needed.
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 199243002 EPDM | 50 | 2 | 63 | 10 | 740 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243002 EPDM |
| 199243003 EPDM | 65 | 2 1/2 | 75 | 10 | 1500 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243003 EPDM |
| 199243004 EPDM | 80 | 3 | 90 | 10 | 2400 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243004 EPDM |
| 199243005 EPDM | 100 | 4 | 110 | 10 | 3800 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243005 EPDM |
| 199243006 EPDM | 125 | 5 | 140 | 10 | 8600 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243006 EPDM |
| 199243007 EPDM | 150 | 6 | 160 | 10 | 11400 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243007 EPDM |
| 199243008 EPDM | 200 | 8 | 225 | 10 | 19900 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243008 EPDM |
| 199243009 EPDM | 250 | 10 | 280 | 10 | 34000 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243009 EPDM |
| 199243010 EPDM | 300 | 12 | 315 | 5 | 50000 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243010 EPDM |
| 199243022 FKM | 50 | 2 | 63 | 10 | 740 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243022 FKM |
| 199243023 FKM | 65 | 2 1/2 | 75 | 10 | 1500 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243023 FKM |
| 199243024 FKM | 80 | 3 | 90 | 10 | 2400 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243024 FKM |
| 199243025 FKM | 100 | 4 | 110 | 10 | 3800 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243025 FKM |
| 199243026 FKM | 125 | 5 | 140 | 10 | 8600 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243026 FKM |
| 199243027 FKM | 150 | 6 | 160 | 10 | 11400 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243027 FKM |
| 199243028 FKM | 200 | 8 | 225 | 10 | 19900 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243028 FKM |
| 199243029 FKM | 250 | 10 | 280 | 10 | 34000 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243029 FKM |
| 199243030 FKM | 300 | 12 | 315 | 5 | 50000 |
Inquiry Enter quantityButterfly valve type 243 PVC-U, FC (Fail safe to close), without manual override · Product code 199243030 FKM |
