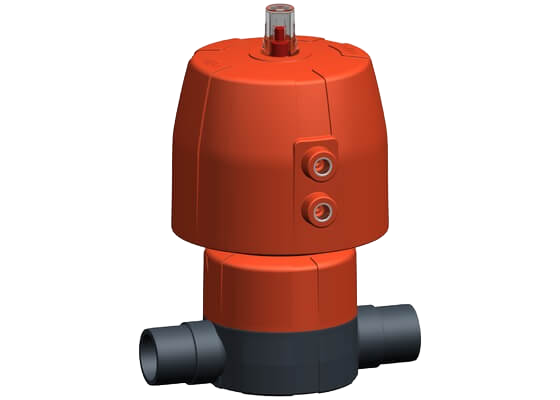

Diaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric
Manufacturer
GEORG FISCHER +GF+
Product description
- Dvojnásobně vyšší průtok ve srovnání se staršími typy
- Celoplastové závitové víko tělesa nahrazující 4 šrouby
- Otočná jednotka pro připojení ovládacího vzduchu v intervalech 90°
- Celková stavební délka dle EN 558
- Pracovní tlak: oboustranný
Další možnosti:
- Individuální konfigurace ventilu
- Široký sortiment příslušenství
- Na zakázku lze nakonfigurovat pro PN16
* PN: PTFE
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 161685012 EPDM | 15 | 10/10* | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161685012 EPDM |
| 161685013 EPDM | 20 | 10/10* | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161685013 EPDM |
| 161685014 EPDM | 25 | 10/10* | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161685014 EPDM |
| 161685015 EPDM | 32 | 10/10* | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161685015 EPDM |
| 161685016 EPDM | 40 | 10/10* | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161685016 EPDM |
| 161685017 EPDM | 50 | 10/10* | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161685017 EPDM |
| 161685032 PTFE/EPDM | 15 | 10/10* | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161685032 PTFE/EPDM |
| 161685033 PTFE/EPDM | 20 | 10/10* | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161685033 PTFE/EPDM |
| 161685034 PTFE/EPDM | 25 | 10/10* | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161685034 PTFE/EPDM |
| 161685035 PTFE/EPDM | 32 | 10/10* | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161685035 PTFE/EPDM |
| 161685036 PTFE/EPDM | 40 | 10/10* | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161685036 PTFE/EPDM |
| 161685037 PTFE/EPDM | 50 | 10/10* | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161685037 PTFE/EPDM |
