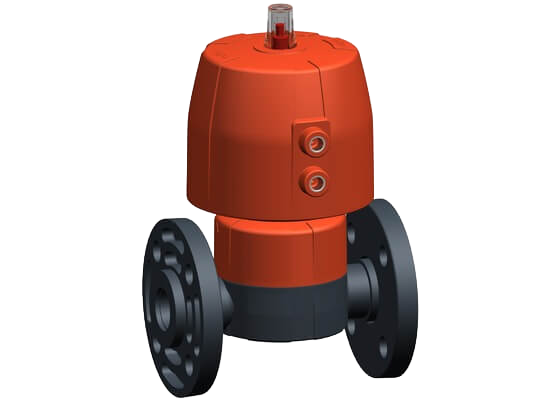

Diaphragm valve type DIASTAR 10 PVC-U, DA (Double acting), with backing flanges PVC-U metric/BS
Manufacturer
GEORG FISCHER +GF+
Product description
- Dvojnásobně vyšší průtok ve srovnání se staršími typy
- Celoplastové závitové víko tělesa nahrazující 4 šrouby
- Hladká těsnící plocha
- Otočná jednotka pro připojení ovládacího vzduchu v intervalech 90°
- Celková stavební délka dle EN 558
- Připojovací rozměry: ISO 7005 PN 10, EN 1092 PN 10, DIN 2501 PN 10,
BS 4504 PN 10 - Pracovní tlak: jednostranný
Další možnosti:
- Individuální konfigurace ventilu
- Široký sortiment příslušenství
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 161657012 EPDM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, DA (Double acting), with backing flanges PVC-U metric/BS · Product code 161657012 EPDM |
| 161657013 EPDM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, DA (Double acting), with backing flanges PVC-U metric/BS · Product code 161657013 EPDM |
| 161657014 EPDM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, DA (Double acting), with backing flanges PVC-U metric/BS · Product code 161657014 EPDM |
| 161657015 EPDM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, DA (Double acting), with backing flanges PVC-U metric/BS · Product code 161657015 EPDM |
| 161657016 EPDM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, DA (Double acting), with backing flanges PVC-U metric/BS · Product code 161657016 EPDM |
| 161657017 EPDM | 50 | 10 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, DA (Double acting), with backing flanges PVC-U metric/BS · Product code 161657017 EPDM |
| 161657032 PTFE/EPDM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, DA (Double acting), with backing flanges PVC-U metric/BS · Product code 161657032 PTFE/EPDM |
| 161657033 PTFE/EPDM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, DA (Double acting), with backing flanges PVC-U metric/BS · Product code 161657033 PTFE/EPDM |
| 161657034 PTFE/EPDM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, DA (Double acting), with backing flanges PVC-U metric/BS · Product code 161657034 PTFE/EPDM |
| 161657035 PTFE/EPDM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, DA (Double acting), with backing flanges PVC-U metric/BS · Product code 161657035 PTFE/EPDM |
| 161657036 PTFE/EPDM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, DA (Double acting), with backing flanges PVC-U metric/BS · Product code 161657036 PTFE/EPDM |
| 161657037 PTFE/EPDM | 50 | 10 | 63 | 1728 |
