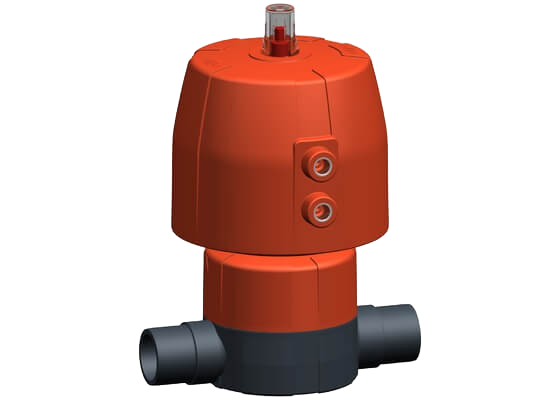

Diaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric
Manufacturer
GEORG FISCHER +GF+
Product description
- Dvojnásobně vyšší průtok ve srovnání se staršími typy
- Celoplastové závitové víko tělesa nahrazující 4 šrouby
- Otočná jednotka pro připojení ovládacího vzduchu v intervalech 90°
- Celková stavební délka dle EN 558
- Pracovní tlak: jednostranný
Další možnosti:
- Individuální konfigurace ventilu
- Široký sortiment příslušenství
* PN: PTFE/EPDM
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 161625012 EPDM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161625012 EPDM |
| 161625013 EPDM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161625013 EPDM |
| 161625014 EPDM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161625014 EPDM |
| 161625015 EPDM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161625015 EPDM |
| 161625016 EPDM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161625016 EPDM |
| 161625017 EPDM | 50 | 10/6* | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161625017 EPDM |
| 161625032 PTFE/EPDM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161625032 PTFE/EPDM |
| 161625033 PTFE/EPDM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161625033 PTFE/EPDM |
| 161625034 PTFE/EPDM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161625034 PTFE/EPDM |
| 161625035 PTFE/EPDM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161625035 PTFE/EPDM |
| 161625036 PTFE/EPDM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161625036 PTFE/EPDM |
| 161625037 PTFE/EPDM | 50 | 10/6* | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 PVC-U, FC (Fail safe to close), with solvent cement spigots metric · Product code 161625037 PTFE/EPDM |
