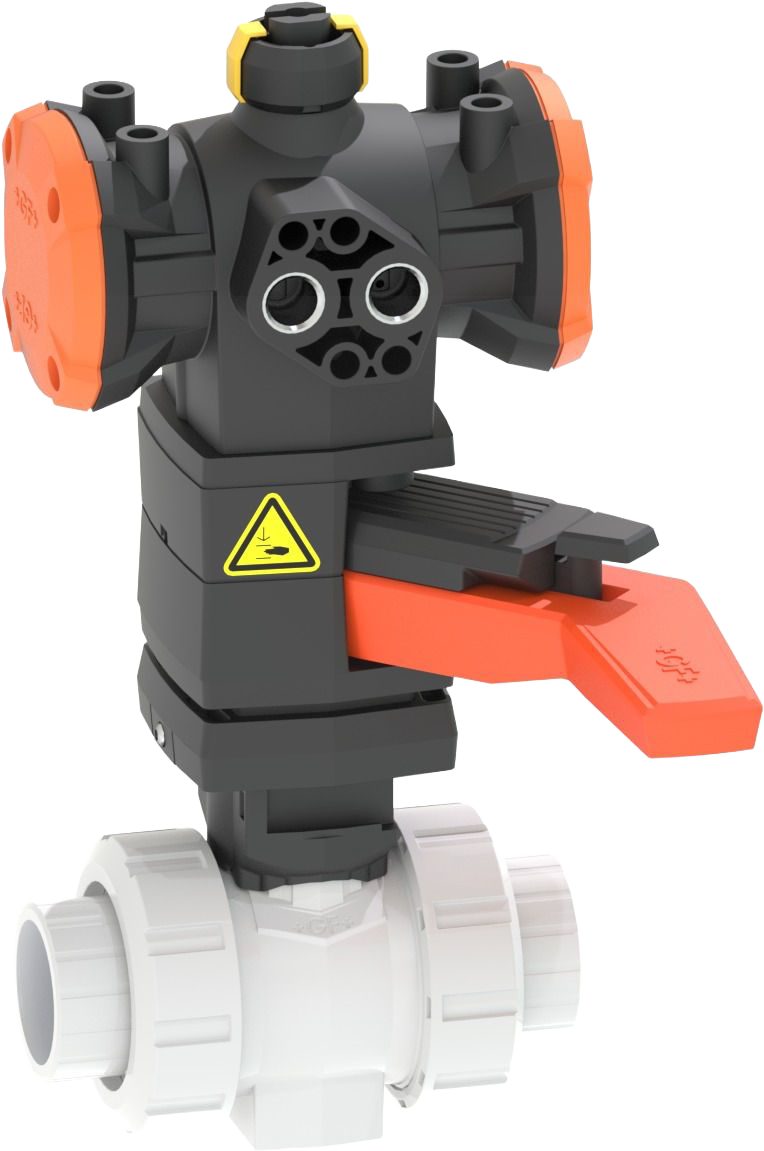

SYGEF Standard Ball valve type 546 Pro with PPA DA (Double acting) / With manual override / With threaded sockets / NPT
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845 with 5.6 bar (81.2 psi)
- Control time 90°<) 1-2s
- For easy installation and removal
- Integrated stainless steel mounting inserts
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
- Z-dimension, valve end and union nut are compatible with type 230 – 235 and 546 (1st Generation)
Option:
- Position feedback sensor, incl. LED feedback (DN10-50) - PNP, NPN and NAMUR
- Positioner RPC, RPC D, RPC PID
- Individual configuration of the valve
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 199252552 FKM | 10 | 16 | 10 | 70 |
Inquiry Enter quantitySYGEF Standard Ball valve type 546 Pro with PPA DA (Double acting) / With manual override / With threaded sockets / NPT · Product code 199252552 FKM |
| 199252553 FKM | 15 | 20 | 10 | 185 |
Inquiry Enter quantitySYGEF Standard Ball valve type 546 Pro with PPA DA (Double acting) / With manual override / With threaded sockets / NPT · Product code 199252553 FKM |
| 199252554 FKM | 20 | 25 | 10 | 350 |
Inquiry Enter quantitySYGEF Standard Ball valve type 546 Pro with PPA DA (Double acting) / With manual override / With threaded sockets / NPT · Product code 199252554 FKM |
| 199252555 FKM | 25 | 32 | 10 | 700 |
Inquiry Enter quantitySYGEF Standard Ball valve type 546 Pro with PPA DA (Double acting) / With manual override / With threaded sockets / NPT · Product code 199252555 FKM |
| 199252556 FKM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantitySYGEF Standard Ball valve type 546 Pro with PPA DA (Double acting) / With manual override / With threaded sockets / NPT · Product code 199252556 FKM |
| 199252557 FKM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantitySYGEF Standard Ball valve type 546 Pro with PPA DA (Double acting) / With manual override / With threaded sockets / NPT · Product code 199252557 FKM |
| 199252558 FKM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantitySYGEF Standard Ball valve type 546 Pro with PPA DA (Double acting) / With manual override / With threaded sockets / NPT · Product code 199252558 FKM |
