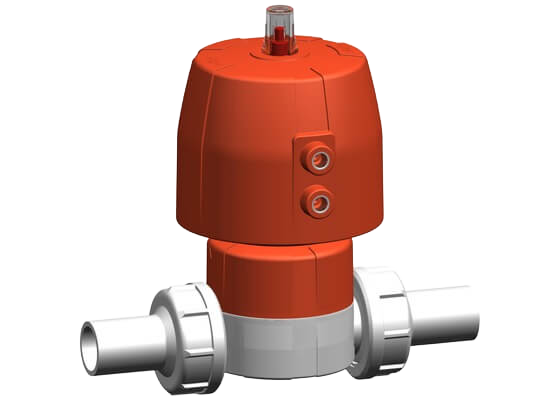

Diaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál: PVDF
- Dvojnásobně vyšší průtok ve srovnání se staršími typy
- Celoplastové závitové víko tělesa nahrazující 4 šrouby
- Otočná jednotka pro připojení ovládacího vzduchu v intervalech 90°
- Jednoduchá montáž a demontáž
- Krátká celková stavební délka
- Pracovní tlak: oboustranný
Další možnosti:
- Individuální konfigurace ventilu
- Široký sortiment příslušenství
Product variants
| Product code | DN [mm] | PN 1 [bar] | d [mm] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 185684132 PTFE/EPDM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric · Product code 185684132 PTFE/EPDM |
| 185684133 PTFE/EPDM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric · Product code 185684133 PTFE/EPDM |
| 185684134 PTFE/EPDM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric · Product code 185684134 PTFE/EPDM |
| 185684135 PTFE/EPDM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric · Product code 185684135 PTFE/EPDM |
| 185684136 PTFE/EPDM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric · Product code 185684136 PTFE/EPDM |
| 185684137 PTFE/EPDM | 50 | 10 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric · Product code 185684137 PTFE/EPDM |
| 185684152 PTFE/FKM | 15 | 10 | 20 | 125 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric · Product code 185684152 PTFE/FKM |
| 185684153 PTFE/FKM | 20 | 10 | 25 | 271 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric · Product code 185684153 PTFE/FKM |
| 185684154 PTFE/FKM | 25 | 10 | 32 | 481 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric · Product code 185684154 PTFE/FKM |
| 185684155 PTFE/FKM | 32 | 10 | 40 | 759 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric · Product code 185684155 PTFE/FKM |
| 185684156 PTFE/FKM | 40 | 10 | 50 | 1263 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric · Product code 185684156 PTFE/FKM |
| 185684157 PTFE/FKM | 50 | 10 | 63 | 1728 |
Inquiry Enter quantityDiaphragm valve type DIASTAR 10 Plus SYGEF Standard, FC (Fail safe to close), Union with butt fusion spigots metric · Product code 185684157 PTFE/FKM |
