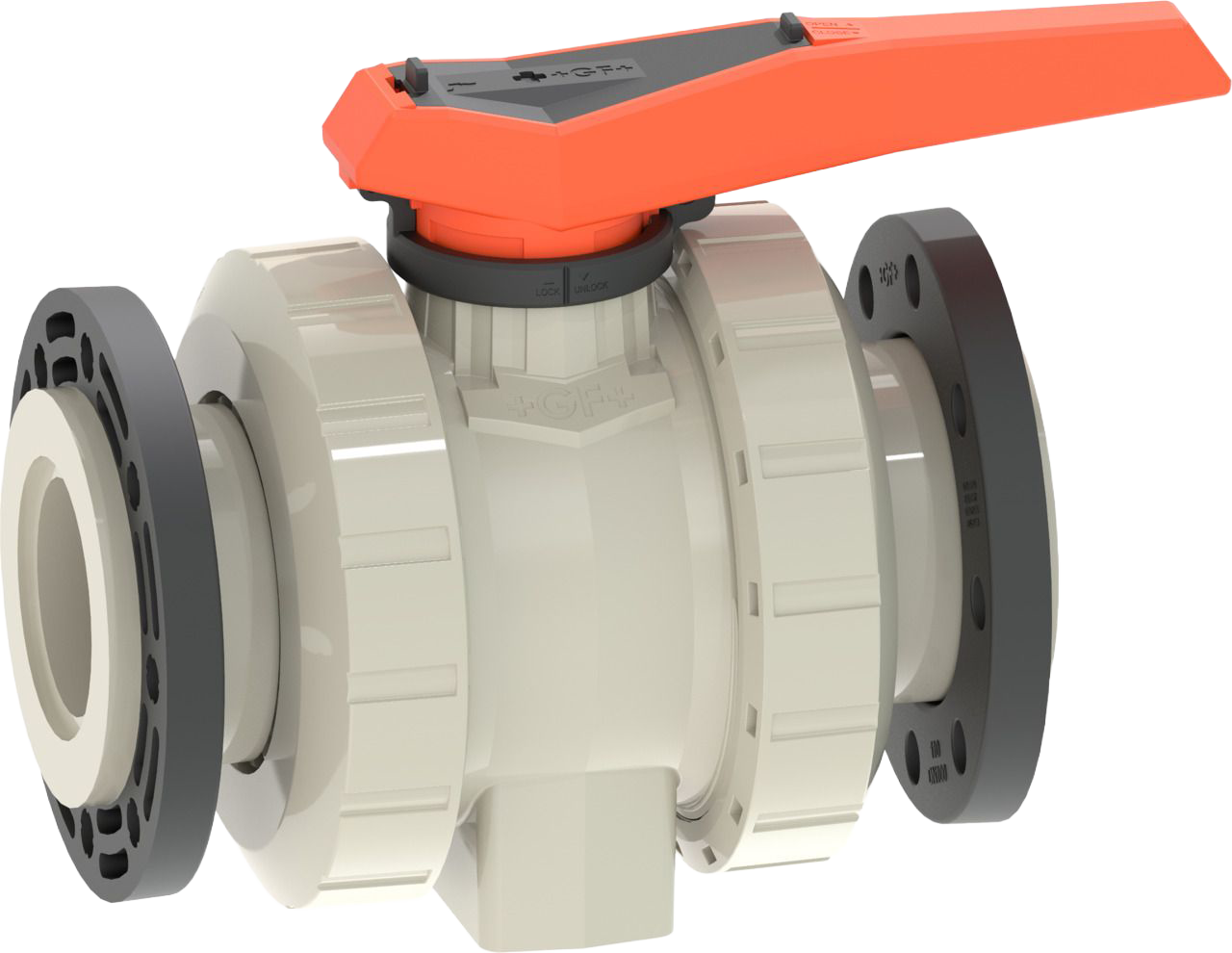

PROGEF Standard Ball Valve type 546 Pro Silicone free / With backing flanges / PP-St / ISO with / PP-H
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Lockable lever as standard
- Ball seat PVDF
- Integrated stainless steel mounting inserts
- z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
Option:
- Interface module for position feedback sensor with LED (PNP, NPN and NAMUR)
- Manual spring return lever "Dead man" (DN10-25)
- Pneumatic or electric actuators from GF
- Individual configuration of the valve possible
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 167546828 EPDM | 65 | 2 1/2 | 75 | 10 | 5000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro Silicone free / With backing flanges / PP-St / ISO with / PP-H · Product code 167546828 EPDM |
| 167546829 EPDM | 80 | 3 | 90 | 10 | 7000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro Silicone free / With backing flanges / PP-St / ISO with / PP-H · Product code 167546829 EPDM |
| 167546830 EPDM | 100 | 4 | 110 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro Silicone free / With backing flanges / PP-St / ISO with / PP-H · Product code 167546830 EPDM |
| 167546838 FKM | 65 | 2 1/2 | 75 | 10 | 5000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro Silicone free / With backing flanges / PP-St / ISO with / PP-H · Product code 167546838 FKM |
| 167546839 FKM | 80 | 3 | 90 | 10 | 7000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro Silicone free / With backing flanges / PP-St / ISO with / PP-H · Product code 167546839 FKM |
| 167546840 FKM | 100 | 4 | 110 | 10 | 11000 |
Inquiry Enter quantityPROGEF Standard Ball Valve type 546 Pro Silicone free / With backing flanges / PP-St / ISO with / PP-H · Product code 167546840 FKM |
