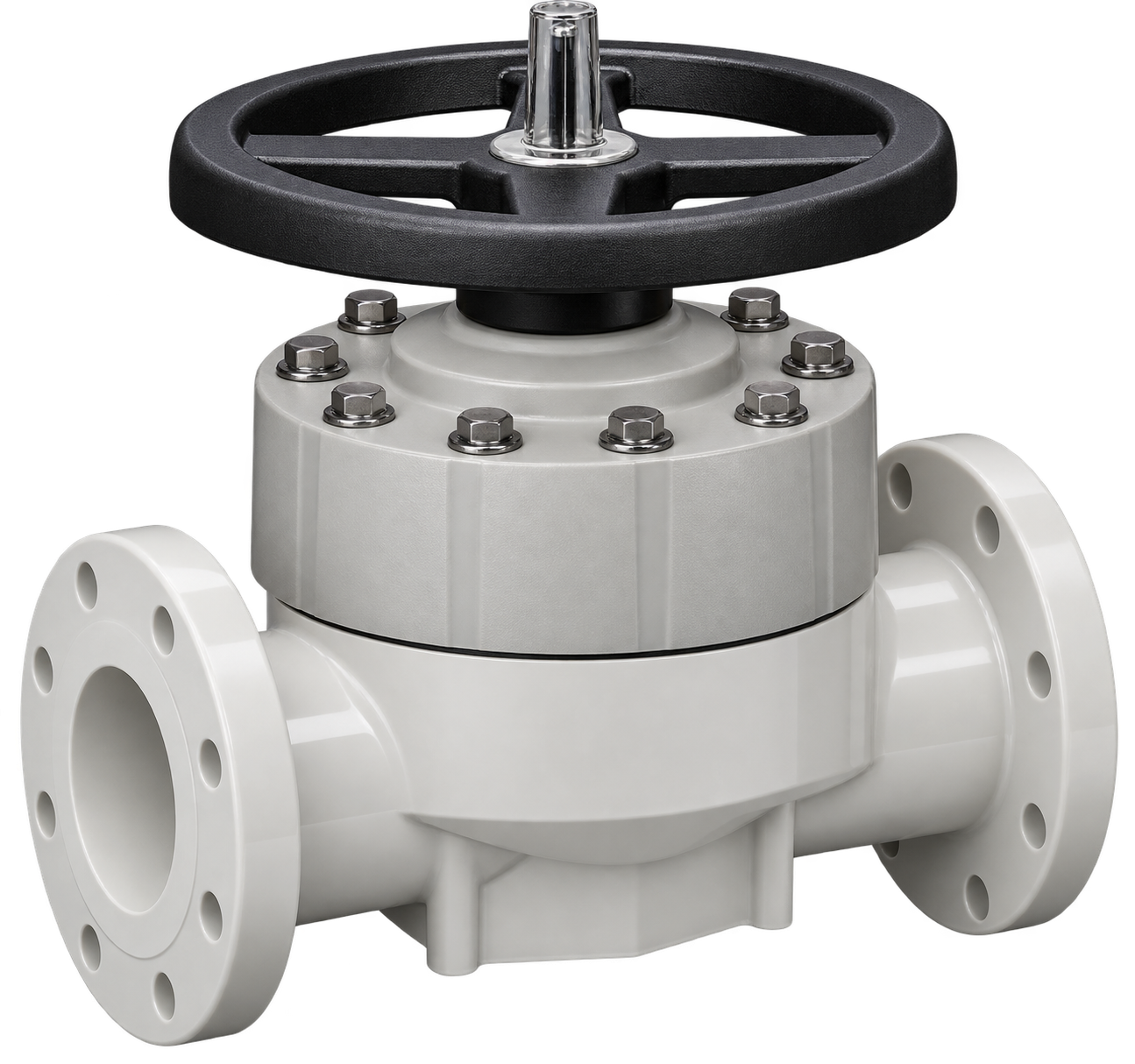

PROGEF Plus silicone free Diaphragm valve type 317 With flanges metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
Material: PP-H / silicone free cleaned
DN 80-150 with fixed flange
Overall length according to EN 558
Connecting dimension: ISO 7005 / EN 1092 / DIN 25 PN10 / BS4504
Double bagged
Jointing surfaces: serrated or flat
* DN80 and DN150 fixed flanges metric and inch ANSI B16.5
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | # | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|---|
| 167317218 EPDM | 65 | 2 1/2 | 75 | 10 | - | 992 |
Inquiry Enter quantityPROGEF Plus silicone free Diaphragm valve type 317 With flanges metric · Product code 167317218 EPDM |
| 167317129 EPDM | 80 | 3 | 90 | 10 | * | 1700 |
Inquiry Enter quantityPROGEF Plus silicone free Diaphragm valve type 317 With flanges metric · Product code 167317129 EPDM |
| 167317130 EPDM | 100 | 4 | 110 | 6 | - | 2700 |
Inquiry Enter quantityPROGEF Plus silicone free Diaphragm valve type 317 With flanges metric · Product code 167317130 EPDM |
| 167317132 EPDM | 150 | 6 | 160 | 6 | * | 6033 |
Inquiry Enter quantityPROGEF Plus silicone free Diaphragm valve type 317 With flanges metric · Product code 167317132 EPDM |
| 167317233 PTFE s EPDM podpůrnou membránou | 65 | 2 1/2 | 75 | 10 | - | 992 |
Inquiry Enter quantityPROGEF Plus silicone free Diaphragm valve type 317 With flanges metric · Product code 167317233 PTFE s EPDM podpůrnou membránou |
| 167317144 PTFE s EPDM podpůrnou membránou | 80 | 3 | 90 | 10 | * | 1700 |
Inquiry Enter quantityPROGEF Plus silicone free Diaphragm valve type 317 With flanges metric · Product code 167317144 PTFE s EPDM podpůrnou membránou |
| 167317145 PTFE s EPDM podpůrnou membránou | 100 | 4 | 110 | 6 | - | 2700 |
Inquiry Enter quantityPROGEF Plus silicone free Diaphragm valve type 317 With flanges metric · Product code 167317145 PTFE s EPDM podpůrnou membránou |
| 167317147 PTFE s EPDM podpůrnou membránou | 150 | 6 | 160 | 6 | * | 6033 |
Inquiry Enter quantityPROGEF Plus silicone free Diaphragm valve type 317 With flanges metric · Product code 167317147 PTFE s EPDM podpůrnou membránou |
