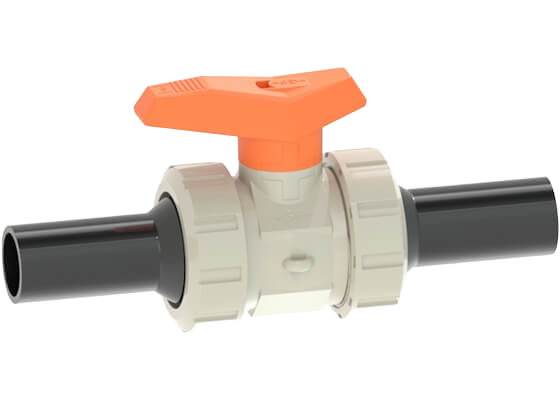

Ball valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Material: PP-H/ PE
- For easy installation and removal
- Ball seat PTFE/ red lever
Option:
- Individual configuration of the valve possible
- Assembling of a valve tag possible
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | SDR | |
|---|---|---|---|---|---|---|---|
| 167542282 EPDM | 15 | 1/2 | 20 | 10 | 185 | 11 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric · Product code 167542282 EPDM |
| 167542283 EPDM | 20 | 3/4 | 25 | 10 | 350 | 11 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric · Product code 167542283 EPDM |
| 167542284 EPDM | 25 | 1 | 32 | 10 | 700 | 11 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric · Product code 167542284 EPDM |
| 167542285 EPDM | 32 | 1 1/4 | 40 | 10 | 1000 | 11 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric · Product code 167542285 EPDM |
| 167542286 EPDM | 40 | 1 1/2 | 50 | 10 | 1600 | 11 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric · Product code 167542286 EPDM |
| 167542287 EPDM | 50 | 2 | 63 | 10 | 3100 | 11 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric · Product code 167542287 EPDM |
| 167542292 FKM | 15 | 1/2 | 20 | 10 | 185 | 11 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric · Product code 167542292 FKM |
| 167542293 FKM | 20 | 3/4 | 25 | 10 | 350 | 11 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric · Product code 167542293 FKM |
| 167542294 FKM | 25 | 1 | 32 | 10 | 700 | 11 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric · Product code 167542294 FKM |
| 167542295 FKM | 32 | 1 1/4 | 40 | 10 | 1000 | 11 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric · Product code 167542295 FKM |
| 167542296 FKM | 40 | 1 1/2 | 50 | 10 | 1600 | 11 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric · Product code 167542296 FKM |
| 167542297 FKM | 50 | 2 | 63 | 10 | 3100 | 11 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots long PE100 SDR11 metric · Product code 167542297 FKM |
