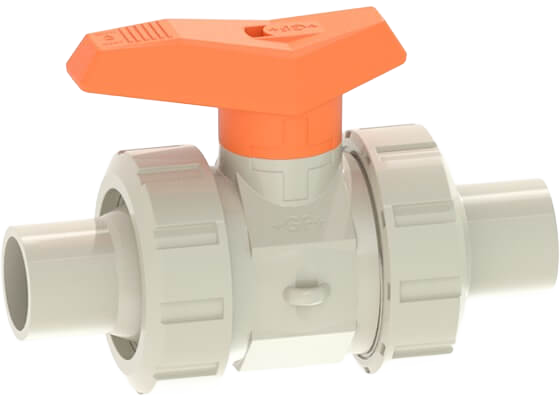

Ball valve type 542 PP-H, with butt fusion spigots SDR11 metric
Product description
- Konstruováno pro snadnou montáž/demontáž
- Těsnění koule PTFE
- Nelze připojit pohonnou jednotku
- Bez montážních závitů
Rozsah použití:
- Základní chemickíé aplikace - oranžová páka.
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 167542442 EPDM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots SDR11 metric · Product code 167542442 EPDM |
| 167542443 EPDM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots SDR11 metric · Product code 167542443 EPDM |
| 167542444 EPDM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots SDR11 metric · Product code 167542444 EPDM |
| 167542445 EPDM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots SDR11 metric · Product code 167542445 EPDM |
| 167542446 EPDM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots SDR11 metric · Product code 167542446 EPDM |
| 167542447 EPDM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots SDR11 metric · Product code 167542447 EPDM |
| 167542452 FKM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots SDR11 metric · Product code 167542452 FKM |
| 167542453 FKM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots SDR11 metric · Product code 167542453 FKM |
| 167542454 FKM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots SDR11 metric · Product code 167542454 FKM |
| 167542455 FKM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots SDR11 metric · Product code 167542455 FKM |
| 167542456 FKM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots SDR11 metric · Product code 167542456 FKM |
| 167542457 FKM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityBall valve type 542 PP-H, with butt fusion spigots SDR11 metric · Product code 167542457 FKM |
