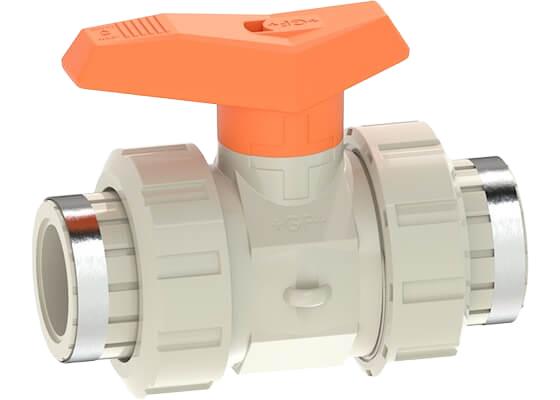

Ball valve type 542 PP-H, with threaded sockets Rp
Product description
- Konstruováno pro snadnou montáž/demontáž
- Těsnění koule PTFE
- Nelze připojit pohonnou jednotku
- Bez montážních závitů
Rozsah použití:
- Základní chemické aplikace - oranžová páka.
Product variants
| Product code | DN [mm] | PN | Rp [inch] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 167542021 EPDM | 10 | 10 | 3∕8 | 71 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542021 EPDM |
| 167542022 EPDM | 15 | 10 | 1∕2 | 185 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542022 EPDM |
| 167542023 EPDM | 20 | 10 | 3∕4 | 350 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542023 EPDM |
| 167542024 EPDM | 25 | 10 | 1 | 700 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542024 EPDM |
| 167542025 EPDM | 32 | 10 | 1 1∕4 | 1000 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542025 EPDM |
| 167542026 EPDM | 40 | 10 | 1 1∕2 | 1600 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542026 EPDM |
| 167542027 EPDM | 50 | 10 | 2 | 3100 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542027 EPDM |
| 167542031 FKM | 10 | 10 | 3∕8 | 71 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542031 FKM |
| 167542032 FKM | 15 | 10 | 1∕2 | 185 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542032 FKM |
| 167542033 FKM | 20 | 10 | 3∕4 | 350 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542033 FKM |
| 167542034 FKM | 25 | 10 | 1 | 700 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542034 FKM |
| 167542035 FKM | 32 | 10 | 1 1∕4 | 1000 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542035 FKM |
| 167542036 FKM | 40 | 10 | 1 1∕2 | 1600 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542036 FKM |
| 167542037 FKM | 50 | 10 | 2 | 3100 |
Inquiry Enter quantityBall valve type 542 PP-H, with threaded sockets Rp · Product code 167542037 FKM |
