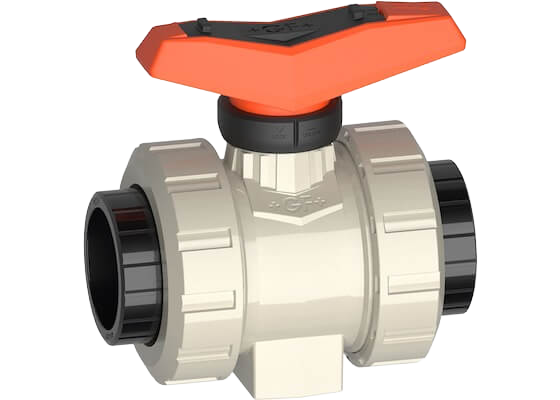

Ball valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Material: PP-H/PE
- Lockable lever as standard (DN10-DN50)
- For easy installation and removal
- Ball seat PTFE
- Integrated stainless steel mounting inserts
- Z-dimension, valve end and union nut are compatible with type 546 (1st Generation)
Option:
- Interface-module with position feedback sensor, incl. LED feedback (DN10-50)
- Manual spring return lever ("Dead man") (DN10-25)
- Pneumatic or electric actuators from GF
- Individual configuration of the valve possible
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 167546161 EPDM | 10 | 16 | 10 | 71 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546161 EPDM |
| 167546162 EPDM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546162 EPDM |
| 167546163 EPDM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546163 EPDM |
| 167546164 EPDM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546164 EPDM |
| 167546165 EPDM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546165 EPDM |
| 167546166 EPDM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546166 EPDM |
| 167546167 EPDM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546167 EPDM |
| 167546171 FKM | 10 | 16 | 10 | 71 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546171 FKM |
| 167546172 FKM | 15 | 20 | 10 | 185 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546172 FKM |
| 167546173 FKM | 20 | 25 | 10 | 350 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546173 FKM |
| 167546174 FKM | 25 | 32 | 10 | 700 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546174 FKM |
| 167546175 FKM | 32 | 40 | 10 | 1000 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546175 FKM |
| 167546176 FKM | 40 | 50 | 10 | 1600 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546176 FKM |
| 167546177 FKM | 50 | 63 | 10 | 3100 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with fusion sockets PE100 metric · Product code 167546177 FKM |
