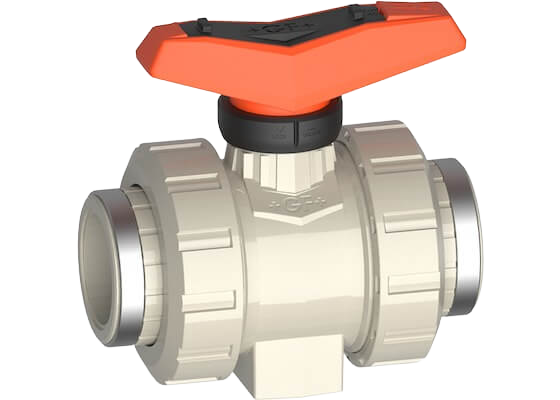

Ball valve type 546 Pro PROGEF Standard, with threaded sockets Rp
Manufacturer
GEORG FISCHER +GF+
Product description
Provedení:
- Materiál: PP-H
- Uzamykatelná ruční páka ve standardní výbavě
- Snadná montáž/demontáž
- Těsnění koule PTFE
- Integrované nerezové montážní závity v tělese ventilu
- Z-rozměr, vložné díly a převlečné matice jsou kompatibilní s typem 546 (první generace)
Možnosti:
- Multifunkční modul se senzorem polohové zpětné vazby, včetně LED signalizace (DN10-50)
- Ruční páka s vratnou pružinou typ "Deadman" (DN10-50)
- Pneumatické nebo elektrické pohony +GF+
- Individuální konfigurace
Product variants
| Product code | DN [mm] | PN 1 [bar] | Rp [inch] | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 167546021 EPDM | 10 | 10 | 3/8 | 71 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546021 EPDM |
| 167546022 EPDM | 15 | 10 | 1/2 | 185 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546022 EPDM |
| 167546023 EPDM | 20 | 10 | 3/4 | 350 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546023 EPDM |
| 167546024 EPDM | 25 | 10 | 1 | 700 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546024 EPDM |
| 167546025 EPDM | 32 | 10 | 1 1/4 | 1000 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546025 EPDM |
| 167546026 EPDM | 40 | 10 | 1 1/2 | 1600 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546026 EPDM |
| 167546027 EPDM | 50 | 10 | 2 | 3100 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546027 EPDM |
| 167546031 FKM | 10 | 10 | 3/8 | 71 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546031 FKM |
| 167546032 FKM | 15 | 10 | 1/2 | 185 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546032 FKM |
| 167546033 FKM | 20 | 10 | 3/4 | 350 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546033 FKM |
| 167546034 FKM | 25 | 10 | 1 | 700 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546034 FKM |
| 167546035 FKM | 32 | 10 | 1 1/4 | 1000 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546035 FKM |
| 167546036 FKM | 40 | 10 | 1 1/2 | 1600 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546036 FKM |
| 167546037 FKM | 50 | 10 | 2 | 3100 |
Inquiry Enter quantityBall valve type 546 Pro PROGEF Standard, with threaded sockets Rp · Product code 167546037 FKM |
