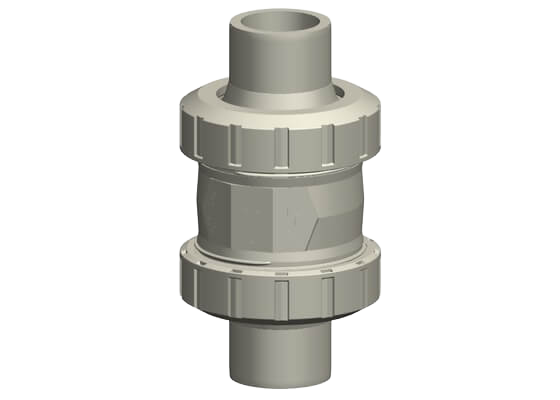

Check valve type 561 PROGEF Standard, with butt fusion spigots, SDR 17.6, metric
Manufacturer
GEORG FISCHER +GF+
Product description
- Materiál: PP-H
- Konstruováno pro snadnou montáž a demontáž
- Bez vibrací i ve vysokých průtočných rychlostech
- Tvar zpětného kužele pro optimální průtok, dvojité uložení
- Instalační pozice vertikální
- Stavební délka shodná s kulovými kohouty typ 546
- Z-rozměr, vložné díly a převlečné matice nejsou kompatibilní s typem 360
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 167561066 EPDM | 40 | 50 | 10 | 1080 |
Inquiry Enter quantityCheck valve type 561 PROGEF Standard, with butt fusion spigots, SDR 17.6, metric · Product code 167561066 EPDM |
| 167561067 EPDM | 50 | 63 | 10 | 1670 |
Inquiry Enter quantityCheck valve type 561 PROGEF Standard, with butt fusion spigots, SDR 17.6, metric · Product code 167561067 EPDM |
| 167561068 EPDM | 65 | 75 | 10 | 2950 |
Inquiry Enter quantityCheck valve type 561 PROGEF Standard, with butt fusion spigots, SDR 17.6, metric · Product code 167561068 EPDM |
| 167561069 EPDM | 80 | 90 | 10 | 3600 |
Inquiry Enter quantityCheck valve type 561 PROGEF Standard, with butt fusion spigots, SDR 17.6, metric · Product code 167561069 EPDM |
| 167561070 EPDM | 100 | 110 | 10 | 4150 |
Inquiry Enter quantityCheck valve type 561 PROGEF Standard, with butt fusion spigots, SDR 17.6, metric · Product code 167561070 EPDM |
| 167561076 FKM | 40 | 50 | 10 | 1080 |
Inquiry Enter quantityCheck valve type 561 PROGEF Standard, with butt fusion spigots, SDR 17.6, metric · Product code 167561076 FKM |
| 167561077 FKM | 50 | 63 | 10 | 1670 |
Inquiry Enter quantityCheck valve type 561 PROGEF Standard, with butt fusion spigots, SDR 17.6, metric · Product code 167561077 FKM |
| 167561078 FKM | 65 | 75 | 10 | 2950 |
Inquiry Enter quantityCheck valve type 561 PROGEF Standard, with butt fusion spigots, SDR 17.6, metric · Product code 167561078 FKM |
| 167561079 FKM | 80 | 90 | 10 | 3600 |
Inquiry Enter quantityCheck valve type 561 PROGEF Standard, with butt fusion spigots, SDR 17.6, metric · Product code 167561079 FKM |
| 167561080 FKM | 100 | 110 | 10 | 4150 |
Inquiry Enter quantityCheck valve type 561 PROGEF Standard, with butt fusion spigots, SDR 17.6, metric · Product code 167561080 FKM |
