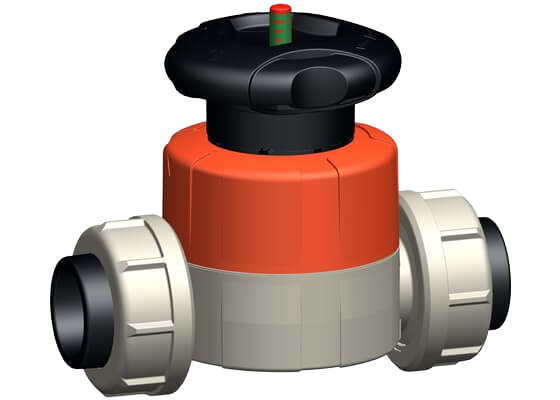

Diaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Material: PP-H/PE
- Double flow rate compared to predecessor
- One housing nut replaces four screws
- Handwheel with built-in locking mechanism
- For easy installation and removal
- Short overall length
Option:
- Individual configuration of the valve
- Self adjusting multifunctional module with integrated limit switches
Product variants
| Product code | DN [mm] | Velikost [inch] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|---|
| 167514212 EPDM | 15 | 1/2 | 20 | 10 | 125 |
Inquiry Enter quantityDiaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric · Product code 167514212 EPDM |
| 167514213 EPDM | 20 | 3/4 | 25 | 10 | 271 |
Inquiry Enter quantityDiaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric · Product code 167514213 EPDM |
| 167514214 EPDM | 25 | 1 | 32 | 10 | 481 |
Inquiry Enter quantityDiaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric · Product code 167514214 EPDM |
| 167514215 EPDM | 32 | 1 1/4 | 40 | 10 | 759 |
Inquiry Enter quantityDiaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric · Product code 167514215 EPDM |
| 167514216 EPDM | 40 | 1 1/2 | 50 | 10 | 1263 |
Inquiry Enter quantityDiaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric · Product code 167514216 EPDM |
| 167514217 EPDM | 50 | 2 | 63 | 10 | 1728 |
Inquiry Enter quantityDiaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric · Product code 167514217 EPDM |
| 167514232 PTFE/EPDM | 15 | 1/2 | 20 | 10 | 125 |
Inquiry Enter quantityDiaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric · Product code 167514232 PTFE/EPDM |
| 167514233 PTFE/EPDM | 20 | 3/4 | 25 | 10 | 271 |
Inquiry Enter quantityDiaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric · Product code 167514233 PTFE/EPDM |
| 167514234 PTFE/EPDM | 25 | 1 | 32 | 10 | 481 |
Inquiry Enter quantityDiaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric · Product code 167514234 PTFE/EPDM |
| 167514235 PTFE/EPDM | 32 | 1 1/4 | 40 | 10 | 759 |
Inquiry Enter quantityDiaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric · Product code 167514235 PTFE/EPDM |
| 167514236 PTFE/EPDM | 40 | 1 1/2 | 50 | 10 | 1263 |
Inquiry Enter quantityDiaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric · Product code 167514236 PTFE/EPDM |
| 167514237 PTFE/EPDM | 50 | 2 | 63 | 10 | 1728 |
Inquiry Enter quantityDiaphragm valve type 514 PROGEF Standard, Union with fusion sockets PE80 metric · Product code 167514237 PTFE/EPDM |
