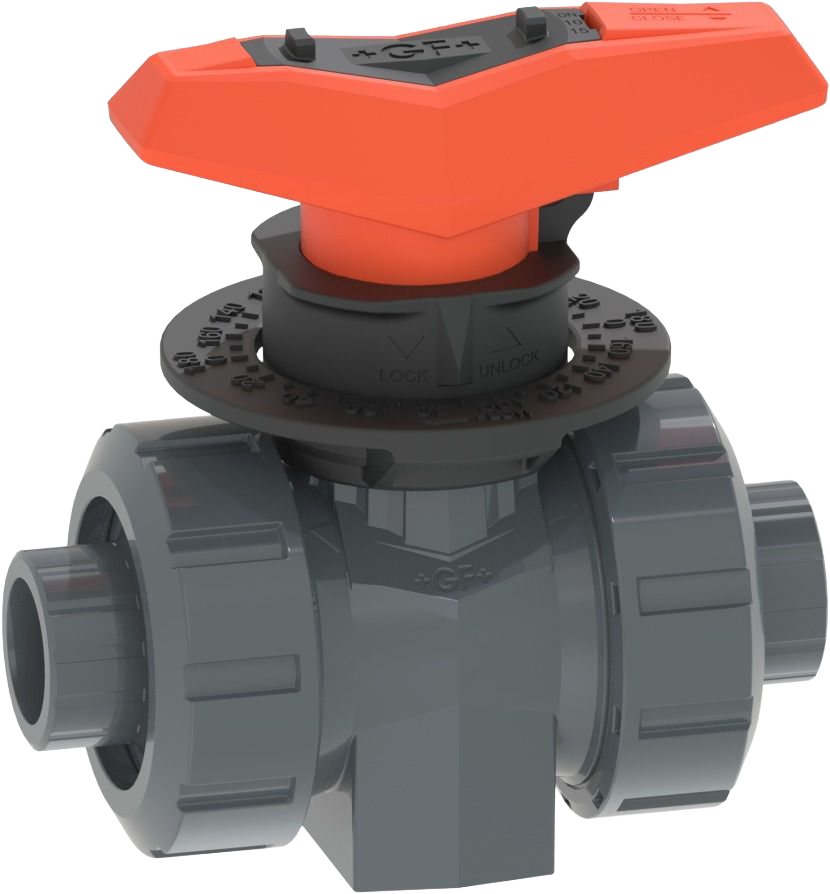

Metering ball valve type 523 Pro PVC-U With solvent cement sockets JIS
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Micro-doser
- Excellent control characteristics
- Designed for easy installation and removal
- Ball seat PTFE
- Angle of operation 180° with scale
- Integrated stainless steel mounting inserts
- Z-length, end connectors and union nuts compatible to Type 523
Option:
- Other materials on demand
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 161523562 EPDM | 15 | 20 | 10 | 20 |
Inquiry Enter quantityMetering ball valve type 523 Pro PVC-U With solvent cement sockets JIS · Product code 161523562 EPDM |
| 161523572 FKM | 15 | 20 | 10 | 20 |
Inquiry Enter quantityMetering ball valve type 523 Pro PVC-U With solvent cement sockets JIS · Product code 161523572 FKM |
