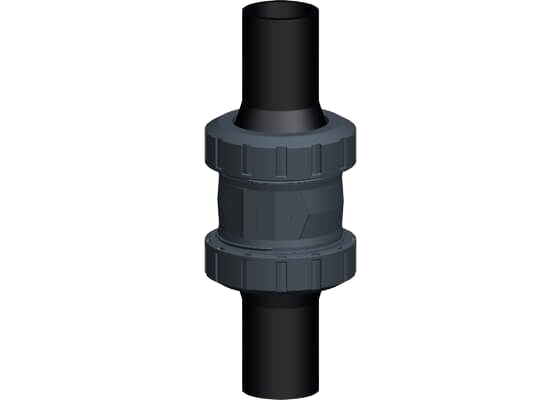

Check valve type 562 PVC-U, with butt fusion spigots long PE100, metric
Manufacturer
GEORG FISCHER +GF+
Product description
Model:
- Material: PVC-U/PE
- For horizontal or vertical installation
- Spring loaded, spring made of stainless steel (1.4310)
- Spring available in other materials, see spare parts
- Designed for easy installation and removal
- Vibration free even at high flow velocity
- Flow-optimized return cone, double guided
- Compact installation length, same as ball valve type 546
- Z-length, end connectors and union nuts not compatible with type 360
Product variants
| Product code | DN [mm] | d [mm] | PN | kv-hodnota (Δp=1 bar) [l/min] | |
|---|---|---|---|---|---|
| 161562142 EPDM | 15 | 20 | 16 | 180 |
Inquiry Enter quantityCheck valve type 562 PVC-U, with butt fusion spigots long PE100, metric · Product code 161562142 EPDM |
| 161562143 EPDM | 20 | 25 | 16 | 380 |
Inquiry Enter quantityCheck valve type 562 PVC-U, with butt fusion spigots long PE100, metric · Product code 161562143 EPDM |
| 161562144 EPDM | 25 | 32 | 16 | 460 |
Inquiry Enter quantityCheck valve type 562 PVC-U, with butt fusion spigots long PE100, metric · Product code 161562144 EPDM |
| 161562145 EPDM | 32 | 40 | 16 | 850 |
Inquiry Enter quantityCheck valve type 562 PVC-U, with butt fusion spigots long PE100, metric · Product code 161562145 EPDM |
| 161562146 EPDM | 40 | 50 | 16 | 1080 |
Inquiry Enter quantityCheck valve type 562 PVC-U, with butt fusion spigots long PE100, metric · Product code 161562146 EPDM |
| 161562147 EPDM | 50 | 63 | 16 | 1670 |
Inquiry Enter quantityCheck valve type 562 PVC-U, with butt fusion spigots long PE100, metric · Product code 161562147 EPDM |
| 161562148 EPDM | 65 | 75 | 16 | 2950 |
Inquiry Enter quantityCheck valve type 562 PVC-U, with butt fusion spigots long PE100, metric · Product code 161562148 EPDM |
| 161562149 EPDM | 80 | 90 | 16 | 3600 |
Inquiry Enter quantityCheck valve type 562 PVC-U, with butt fusion spigots long PE100, metric · Product code 161562149 EPDM |
| 161562150 EPDM | 100 | 110 | 16 | 4150 |
Inquiry Enter quantityCheck valve type 562 PVC-U, with butt fusion spigots long PE100, metric · Product code 161562150 EPDM |
